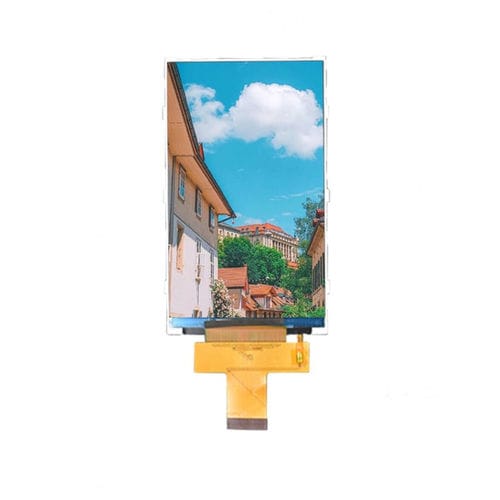

TFT LCD display module YX43014AIPScolor480 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Type
- color
- Format
- 480 x 800
- Screen size
- 4.3"
- Applications
- industrial, for medical equipment, HMI, for transportation, for vehicles
- Interface
- RGB, MIPI
- Structure
- compact
- Configuration/mounting
- portable
- Operating system
- Linux, Android
- Other characteristics
- wide-viewing angle, high-contrast
- Length
104.5 mm
(4.114 in)- Width
60.86 mm
(2.3961 in)- Thickness
2 mm
(0.079 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
Product overview
The YX43014A is a 4.3-inch IPS TFT-LCD module with 480×800 (WVGA) resolution and a MIPI DSI interface, designed for industrial HMI, medical terminals, smart devices and embedded Linux/Android platforms. IPS technology and All-O'Clock viewing direction provide consistent color reproduction, high contrast ratio and good readability from wide angles. The ST7701S driver IC supports stable high-speed MIPI video transmission for smooth graphics and responsive user interfaces. Its slim 2.0 mm profile and compact active area suit space-constrained device designs requiring clear visual performance.
Key specifications
Display size: 4.3 inch
Resolution: 480 (RGB) × 800 (WVGA)
Active area: 56.16 × 93.60 mm
Outline dimensions: 60.86 × 104.50 × 2.00 mm
Pixel pitch: 0.117 × 0.117 mm
Optical characteristics
Contrast ratio: 800:1
Color gamut: 60%
Luminance: 340 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): All-O'Clock, 80° (all directions)
Response time: 25 ms
Operating conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)
The YX43014A is a 4.3-inch IPS TFT-LCD module with 480×800 (WVGA) resolution and a MIPI DSI interface, designed for industrial HMI, medical terminals, smart devices and embedded Linux/Android platforms. IPS technology and All-O'Clock viewing direction provide consistent color reproduction, high contrast ratio and good readability from wide angles. The ST7701S driver IC supports stable high-speed MIPI video transmission for smooth graphics and responsive user interfaces. Its slim 2.0 mm profile and compact active area suit space-constrained device designs requiring clear visual performance.
Key specifications
Display size: 4.3 inch
Resolution: 480 (RGB) × 800 (WVGA)
Active area: 56.16 × 93.60 mm
Outline dimensions: 60.86 × 104.50 × 2.00 mm
Pixel pitch: 0.117 × 0.117 mm
Optical characteristics
Contrast ratio: 800:1
Color gamut: 60%
Luminance: 340 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): All-O'Clock, 80° (all directions)
Response time: 25 ms
Operating conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)
