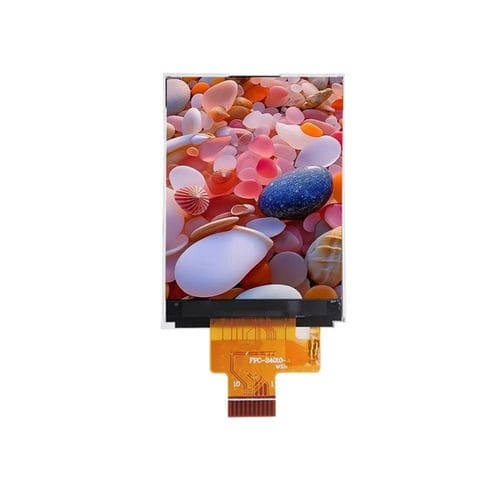

LED display module YX24010A

TFT LCDTNcolor

Product Overview
The YX24010A is a 2.4-inch TFT LCD module with 240×320 (RGB) resolution, a‑Si TFT positive transmissive panel and integrated ST7789V driver. It is designed for compact embedded and handheld applications, MCU-based systems, portable instruments and industrial control equipment where a small-format graphical display is required.

Key Features

• Display size: 2.4 inch
• Resolution: 240 (RGB) × 320
• LCD type: a-Si TFT, positive transmissive
• Driver IC: ST7789V
• Interface: SPI
• Viewing direction: TN, 12 o'clock
• Backlight: 4 × white LEDs
• LCM input voltage: 2.8 ±0.1 V

Technical Specifications

• Model: YX24010A
• Active area: 36.72 × 48.96 mm
• Outline dimensions: 42.72 × 60.26 × 2.45 mm
• Pixel pitch: 0.153 × 0.153 mm
• Typical luminance: 250 cd/m²
• Contrast ratio (typ): 500:1
• Color gamut (typ): 60%
• Response time (typ): 16 ms

Optical and Mechanical Data

• Viewing angle (CR≥10) (typ): L45° / R45° / U45° / D20°
• Resolution: 240 × 320
• Backlight configuration: White LED ×4

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Mechanical drawing
Mechanical drawing available for mounting and outline reference; refer to the drawing for connector and mounting hole positions.
