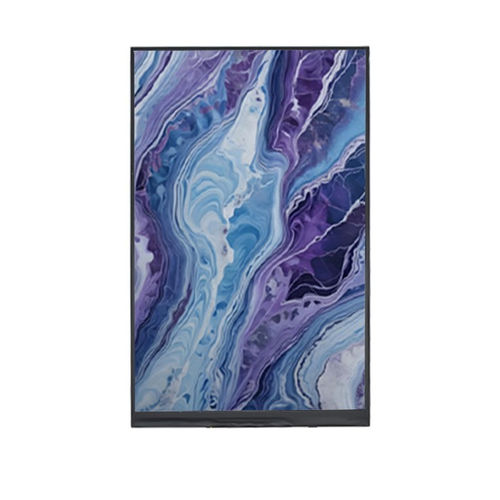

TFT LCD display module YX08025252481HB

IPScolor800 x 1280

Product Overview
The YX08025252481HB is an 8.0-inch IPS TFT LCD module with 800 × 1280 resolution and a MIPI DSI interface, developed for industrial control panels, medical equipment, handheld terminals and embedded HMI applications requiring a large, wide-angle display.
The IPS panel provides consistent brightness, accurate color reproduction and All-O'Clock viewing performance, enabling reliable operator-facing displays and information-dense interfaces.
The MIPI DSI interface supports high-speed data transmission and compact system integration to simplify cabling in modern embedded designs.

Basic Specifications
Display size: 8.0 inch
LCD type: IPS TFT-LCD, transmissive
Display mode: Normally Black
Resolution: 800 (RGB) × 1280
Active area: 107.64 × 172.22 mm
Outline dimensions: 114.70 × 184.10 × 3.10 mm
Pixel pitch: 0.13455 × 0.13455 mm
Pixel arrangement: RGB vertical stripe
Viewing direction: All-O'Clock (IPS)
Interface: MIPI DSI
Backlight: White LED

Optical Characteristics
Resolution: 800 × 1280
Contrast ratio: 800 : 1
Luminance: 500 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 80° (all directions)
Response time: 25 ms

Operating Conditions
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical Drawing
Outline dimensions and mechanical drawing are provided for integration reference (114.70 × 184.10 × 3.10 mm).

Technical specifications

• Model: YX08025252481HB
• Brand: Yousee
• Display size: 8.0 inch
• Resolution: 800 × 1280 (RGB)
• LCD type: IPS TFT-LCD, transmissive
• Display mode: Normally Black
• Active area: 107.64 × 172.22 mm
• Outline dimensions: 114.70 × 184.10 × 3.10 mm
• Pixel pitch: 0.13455 × 0.13455 mm
• Pixel arrangement: RGB vertical stripe
• Viewing direction: All-O'Clock (IPS)
• Interface: MIPI DSI
• Backlight: White LED
• Contrast ratio: 800 : 1
• Luminance: 500 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time: 25 ms
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
