TFT LCD display module YX35012A
color640 x 4803.5"

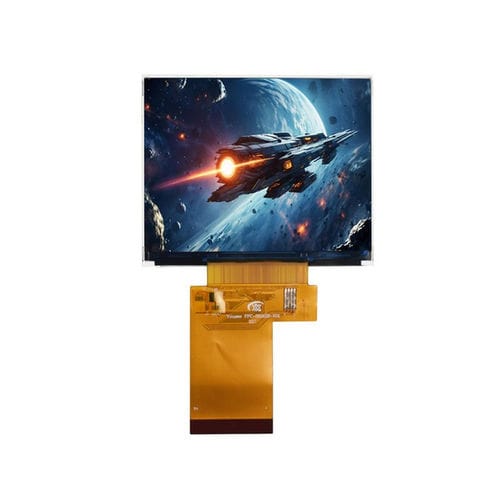

TFT LCD display module - YX35012A - Shenzhen Yousee Technology Co., Ltd. - color / 640 x 480 / 3.5"
TFT LCD display module - YX35012A - Shenzhen Yousee Technology Co., Ltd. - color / 640 x 480 / 3.5"
TFT LCD display module - YX35012A - Shenzhen Yousee Technology Co., Ltd. - color / 640 x 480 / 3.5" - image - 2
TFT LCD display module - YX35012A - Shenzhen Yousee Technology Co., Ltd. - color / 640 x 480 / 3.5" - image - 3
Add to favorites
Compare this product
Go to the Shenzhen Yousee Technology Co., Ltd. website for more information

Characteristics

Screen type
TFT LCD
Type
color
Format
640 x 480
Screen size
3.5"
Applications
industrial, for medical equipment, for control panels, medical
Interface
RGB, SPI
Structure
compact
Other characteristics
wide-viewing angle
Length

76.9 mm
(3.028 in)

Width

63.9 mm
(2.5157 in)

Thickness

3 mm
(0.118 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Product Overview
The YX35012A is a 3.5-inch transmissive TFT-LCD display module with 640×480 (VGA) resolution. It supports dual interfaces (3SPI and 24-bit RGB) and is driven by the N93052C driver IC, enabling use with MCU-driven SPI systems or RGB-driven platforms. The module delivers VGA-level clarity, wide viewing (All O'Clock) and a compact outline suitable for industrial control, medical terminals, POS and embedded applications.

Key Features
  • Display size: 3.5 inch, transmissive TFT-LCD
  • Resolution: 640×480 (RGB, VGA)
  • Dual interface: 3SPI + 24-bit RGB
  • Driver IC: N93052C
  • Wide viewing direction: All O'Clock
  • Compact outline dimensions
  • Operational range for industrial use


Basic Specifications
Model: YX35012A
Display size: 3.5 inch
LCD type: TFT-LCD, transmissive
Resolution: 640 (RGB) × 480
Active area: 70.08 × 52.56 mm
Outline dimensions: 76.9 × 63.9 × 3.0 mm
Pixel pitch: 0.110 × 0.110 mm
Viewing direction: All O'Clock
Interface: 3SPI + 24-bit RGB
Driver IC: N93052C

Optical Characteristics
Contrast ratio: 600–800 : 1
Color gamut: 50%
Luminance: 300 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 75°–85° (all directions)
Response time: 25 ms

Operating Conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)

Applications
  • Industrial control panels
  • Medical terminals
  • Point-of-sale (POS) systems
  • Embedded platforms and industrial/consumer devices requiring VGA-level display quality


Technical specifications
  • Model: YX35012A
  • Display size: 3.5 inch
  • Resolution: 640×480 (RGB)
  • Active area: 70.08 × 52.56 mm
  • Outline dimensions: 76.9 × 63.9 × 3.0 mm
  • Pixel pitch: 0.110 × 0.110 mm
  • LCD type: TFT-LCD, transmissive
  • Viewing direction: All O'Clock
  • Driver IC: N93052C
  • Interface: 3SPI + 24-bit RGB
  • Contrast ratio: 600–800 : 1
  • Color gamut: 50%
  • Luminance: 300 cd/m²
  • Luminance uniformity: 80%
  • Viewing angle (CR ≥ 10): 75°–85°
  • Response time: 25 ms
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -30°C to +80°C
  • Humidity: ≤ 90% RH (60°C)
