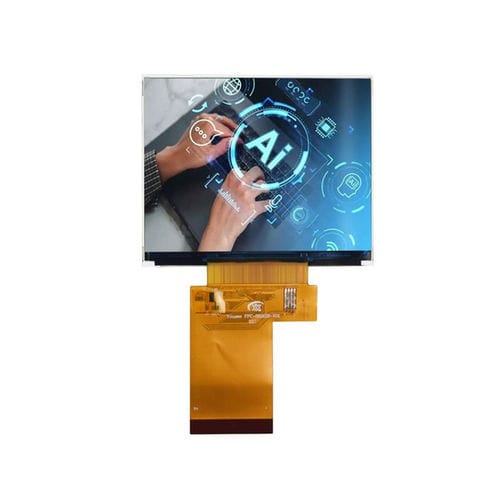

TFT LCD display module YX32005B

TNcolor240 x 320

Description The YX32005B is a 3.2-inch TFT LCD display module with 240×320 resolution, a-Si positive transmissive TFT and ST7789V driver IC. Designed for reliable brightness and clear image performance, it is suited for industrial control panels, handheld terminals and embedded HMI applications.

Key Features

• Display size: 3.2 inch
• Resolution: 240 (RGB) × 320
• Driver IC: ST7789V
• Interface: 4-wire SPI
• LCD type: a-Si TFT, Positive Transmissive
• Viewing direction: TN, 12 O’Clock (front-view optimized)

Basic SpecificationsDisplay Size: 3.2 inch
LCD Type: a-Si TFT, Positive Transmissive
Resolution: 240 (RGB) × 320
Active Area: 48.60 × 64.80 mm
Outline Dimensions: 53.60 × 76.00 × 2.45 mm
Pixel Pitch: 0.2025 × 0.2025 mm
Viewing Direction: TN, 12 O’Clock
Driver IC: ST7789V
Interface: 4-Wire SPI

Optical CharacteristicsResolution: 240 × 320
Contrast Ratio: 500 : 1
Color Gamut: 60%
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 45° (L) / 45° (R) / 45° (U) / 20° (D)
Response Time: 16 ms

Operating ConditionsOperating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Technical specifications

• Model: YX32005B
• Display Size: 3.2 inch
• Resolution: 240 (RGB) × 320 pixels
• Active Area: 48.60 × 64.80 mm
• Outline Dimensions: 53.60 × 76.00 × 2.45 mm
• Pixel Pitch: 0.2025 × 0.2025 mm
• LCD Type: a-Si TFT, Positive Transmissive
• Viewing Direction: TN, 12 O’Clock (optimized for front-view)
• Driver IC: ST7789V
• Interface: 4-wire SPI
• Contrast Ratio: 500:1
• Color Gamut: 60%
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): L45° / R45° / U45° / D20°
• Response Time: 16 ms
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -30°C to +80°C
• Maximum Humidity (storage): ≤ 90% RH (60°C)
• Recommended applications: industrial control panels, handheld terminals, embedded HMI systems
