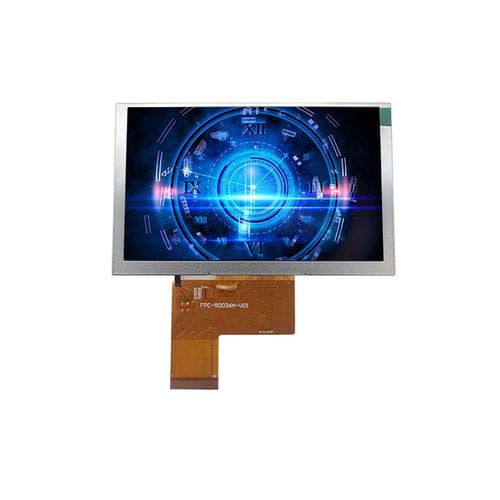

LED display module YX070IK27842472A

TFT LCDIPScolor

Overview
The YX070IK27842472A is a 7.0-inch high-brightness TFT LCD display module with 800×480 resolution and a 24-bit RGB interface. Designed for industrial control systems, outdoor equipment, vehicle displays and embedded applications, it delivers strong visibility in high ambient light conditions with typical luminance up to 900 cd/m². The module operates in Normally Black mode and employs IPS viewing technology for wide-angle performance and consistent color reproduction.

Basic Specifications
Display Size: 7.0 inch
LCD Type: TFT-LCD, Transmissive
Display Mode: Normally Black
Resolution: 800 (RGB) × 480
Active Area: 153.84 × 85.63 mm
Outline Dimensions: 165.0 × 100.0 × 5.7 mm
Pixel Pitch: 0.1506 × 0.1432 mm
Pixel Arrangement: RGB Vertical Stripe
Viewing Direction: All-O’Clock
Interface: 24-bit RGB
Backlight: White LED

Optical Characteristics
Resolution (typical): 800 × 480
Contrast Ratio (typical): 800 : 1
Luminance (typical): 900 cd/m²
Luminance Uniformity (typical): 80%
Viewing Angle (CR ≥ 10, typical): 80° (All directions)
Response Time (typical): 25 ms

Mechanical Drawing
Mechanical drawing and dimensional diagram are provided on the product page for integration reference. Dimensions and mounting details support panel and HMI integration.

Additional Product Notes
The module uses a white LED backlight and a 24-bit RGB input interface. It is suitable for sunlight-readable applications and intended for industrial and outdoor deployments where high brightness and wide viewing are required.

Caractéristiques / spécifications techniques

• Model: YX070IK27842472A
• Display size: 7.0 inch
• Resolution: 800 (RGB) × 480
• LCD type: TFT-LCD, Transmissive
• Display mode: Normally Black
• Viewing technology: IPS (wide viewing) / Viewing Direction: All-O'Clock
• Interface: 24-bit RGB
• Backlight: White LED
• Active area: 153.84 × 85.63 mm
• Outline dimensions: 165.0 × 100.0 × 5.7 mm
• Pixel pitch: 0.1506 × 0.1432 mm
• Pixel arrangement: RGB Vertical Stripe
• Contrast ratio (typ): 800 : 1
• Luminance (typ): 900 cd/m² (sunlight-readable/high brightness)
• Luminance uniformity (typ): 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time (typ): 25 ms
• Operating temperature: -20°C to +60°C
• Storage temperature: -30°C to +70°C
• Typical applications: industrial control, outdoor equipment, vehicle displays, embedded systems
