TFT LCD display module YX50003A
TNcolor480 x 854

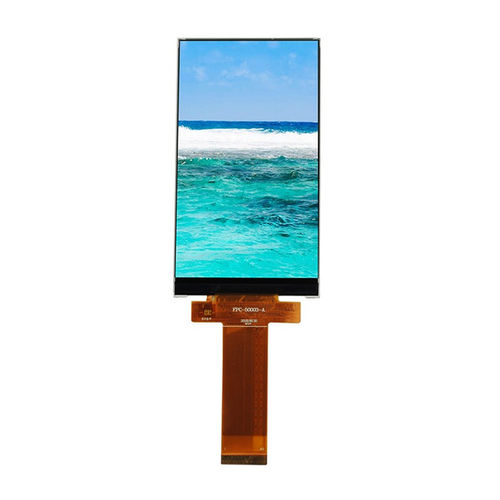

TFT LCD display module - YX50003A - Shenzhen Yousee Technology Co., Ltd. - TN / color / 480 x 854
TFT LCD display module - YX50003A - Shenzhen Yousee Technology Co., Ltd. - TN / color / 480 x 854
TFT LCD display module - YX50003A - Shenzhen Yousee Technology Co., Ltd. - TN / color / 480 x 854 - image - 2
Add to favorites
Compare this product
Go to the Shenzhen Yousee Technology Co., Ltd. website for more information

Characteristics

Screen type
TFT LCD, TN
Type
color
Format
480 x 854
Screen size
5"
Applications
industrial, for control panels
Interface
RGB, MCU, 8080 interface
Structure
compact
Configuration/mounting
portable
Length

66.4 mm
(2.614 in)

Width

120.05 mm
(4.7264 in)

Thickness

2.1 mm
(0.083 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Product Overview
The YX50003A is a 5.0-inch TFT LCD display module with 480×854 resolution in portrait orientation, designed for handheld terminals, industrial HMI and embedded control systems. It features a standard 8080 MCU interface supporting 8-bit and 16-bit parallel modes for direct MCU integration without complex video processing. With a compact 5.0-inch footprint and stable display performance, the YX50003A is suitable for portable instruments, smart terminals, data collection devices and industrial controllers.

Applications
  • Handheld terminals
  • Industrial HMI
  • Embedded control applications
  • Portable instruments
  • Smart terminals
  • Data collection devices
  • Industrial controllers

Basic Specifications
Display size: 5.0 inch
LCD type: TFT-LCD, transmissive
Resolution: 480 (RGB) × 854
Active area: 61.56 × 109.53 mm
Outline dimensions: 66.4 × 120.05 × 2.1 mm
Pixel pitch: 0.128 × 0.128 mm
Viewing direction: 12 O'Clock (TN)
Driver IC: OTM8009A
Interface: 8080 MCU (8-bit / 16-bit)

Optical Characteristics
Resolution: 480 × 854
Contrast ratio: 600 : 1
Color gamut: 50%
Luminance: 300 cd/m²
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 60° / 55° / 60° / 60°
Response time: 17.5 ms

Operating Conditions
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)

Technical specifications
  • Model: YX50003A
  • Display size: 5.0 inch
  • Resolution: 480 (RGB) × 854
  • LCD type: TFT-LCD, transmissive
  • Active area: 61.56 × 109.53 mm
  • Outline dimensions: 66.4 × 120.05 × 2.1 mm
  • Pixel pitch: 0.128 × 0.128 mm
  • Viewing direction: 12 O'Clock (TN)
  • Driver IC: OTM8009A
  • Interface: 8080 MCU (supports 8-bit and 16-bit parallel)
  • Contrast ratio: 600:1
  • Color gamut: 50%
  • Luminance: 300 cd/m²
  • Luminance uniformity: 80%
  • Viewing angle (CR ≥ 10): 60° / 55° / 60° / 60°
  • Response time: 17.5 ms
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -30°C to +80°C
  • Maximum humidity: ≤ 90% RH (60°C)
  • Typical applications: handheld terminals, industrial HMI, embedded control, portable instruments, smart terminals, data collection devices, industrial controllers
