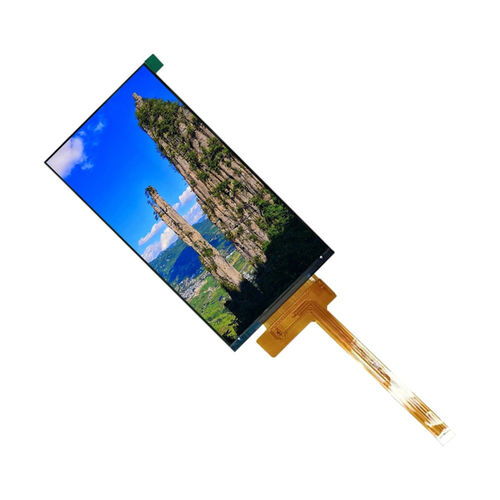

TFT LCD display module YX55027A

IPScolor480 x 960

Overview
The YX55027A is a 5.45-inch IPS TFT-LCD display module with 480×960 resolution in portrait orientation, developed for handheld terminals, smart devices, portable instruments and embedded display systems. IPS technology combined with an All-O'Clock wide viewing angle provides consistent color reproduction and good readability from all directions. The MIPI DSI interface enables high-speed data transfer for smooth graphics and responsive user interfaces.

Key Features

• Display Size: 5.45 inch
• Resolution: 480 (RGB) × 960
• LCD Type: IPS TFT-LCD, Transmissive
• Viewing Direction: All-O'Clock (wide viewing angle)
• Driver IC: ST7701S
• Interface: MIPI DSI

Basic Specifications (table)
Display Size: 5.45 inch
LCD Type: IPS TFT-LCD, Transmissive
Resolution: 480 (RGB) × 960
Active Area: 61.92 × 123.84 mm
Outline Dimensions: 64.32 × 130.09 × 2.25 mm
Pixel Pitch: 0.129 × 0.129 mm
Viewing Direction: All-O'Clock
Driver IC: ST7701S
Interface: MIPI DSI

Optical Characteristics (table)
Resolution: 480 × 960
Contrast Ratio: 800 : 1
Color Gamut: 60%
Luminance: 350 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time: 25 ms

Operating Conditions (table)
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical Drawing
Outline Dimensions: 64.32 × 130.09 × 2.25 mm (mechanical drawing available on product page)

Applications

• Handheld terminals
• Smart devices
• Portable instruments
• Embedded display systems

Technical Specifications

• Model: YX55027A
• Display Size: 5.45 inch
• Resolution: 480 (RGB) × 960
• Active Area: 61.92 × 123.84 mm
• Outline Dimensions: 64.32 × 130.09 × 2.25 mm
• Pixel Pitch: 0.129 × 0.129 mm
• LCD Type: IPS TFT-LCD, Transmissive
• Viewing Direction: All-O'Clock
• Driver IC: ST7701S
• Interface: MIPI DSI
• Contrast Ratio: 800 : 1
• Color Gamut: 60%
• Luminance: 350 cd/m²
• Luminance Uniformity: 80%
• Viewing Angle (CR ≥ 10): 80° (All directions)
• Response Time: 25 ms
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
