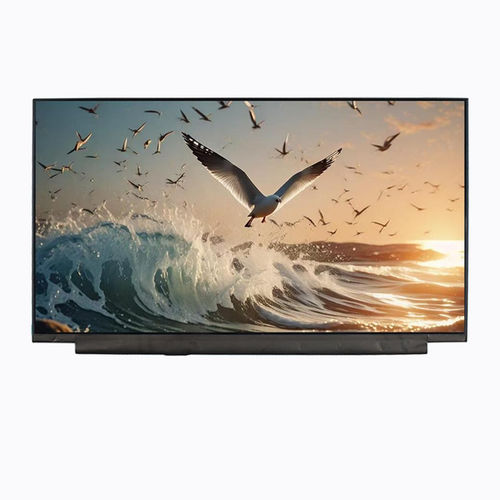

TFT LCD display module YX173FHM-N4F

IPScolor1920 x 1080

Overview
The Yousee YX173FHM-N4F is a 17.3-inch Full HD TFT-LCD display module (1920×1080) with an eDP interface, designed for industrial monitors, embedded display systems, medical equipment and professional display applications requiring a large screen, high resolution and stable long-term performance. The FHD resolution and 17.3-inch active area provide clear image details and sharp text rendering. The Normally Black mode delivers balanced contrast and improved image depth for professional environments. The eDP interface ensures high-speed, reliable signal transmission, and the robust mechanical structure supports integration into industrial enclosures and custom display assemblies.

Basic Specifications
Item : Specification
Display Size : 17.3 inch
LCD Type : TFT-LCD, Transmissive
Display Mode : Normally Black
Resolution : 1920 (RGB) × 1080
Active Area : 381.89 × 214.81 mm
Outline Dimensions : 398.40 × 232.80 × 6.50 mm
Pixel Pitch : 0.1989 × 0.1989 mm
Pixel Arrangement : RGB Vertical Stripe
Viewing Direction : All-O’Clock (IPS)
Interface : eDP
Backlight : White LED

Mechanical Drawing
Mechanical drawing and outline dimensions are provided for integration and mounting reference to facilitate enclosure design and panel integration.

Optical Characteristics
Parameter : Typical
Resolution : 1920 × 1080
Contrast Ratio : 1000 : 1
Color Gamut : 72% NTSC
Luminance : 300 cd/m²
Luminance Uniformity : 80%
Viewing Angle (CR ≥ 10) : 85° / 85° / 85° / 85°
Response Time : 30 ms

Operating Conditions
Item : Range
Operating Temperature : 0°C ~ +50°C
Storage Temperature : -20°C ~ +60°C

Features / Technical specifications

• Model: YX173FHM-N4F
• Display size: 17.3 inch
• Native resolution: 1920 × 1080 (FHD)
• Panel type: TFT-LCD, transmissive, Normally Black
• Viewing: IPS / All-O'Clock
• Interface: eDP
• Active area: 381.89 × 214.81 mm
• Outline dimensions: 398.40 × 232.80 × 6.50 mm
• Pixel pitch & arrangement: 0.1989 × 0.1989 mm, RGB vertical stripe
• Backlight: White LED
• Typical luminance: 300 cd/m²; uniformity: 80%
• Contrast ratio: 1000:1; color gamut: 72% NTSC
• Viewing angles: 85°/85°/85°/85° (CR ≥ 10)
• Response time: 30 ms
• Operating temp: 0°C to +50°C; Storage temp: -20°C to +60°C
