TFT LCD display module YX39501B

TNcolor320 x 480

Product overview

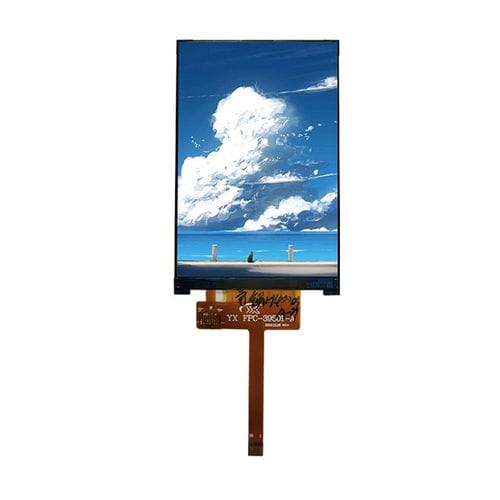

The Yousee YX39501B is a 3.95-inch SPI TFT LCD module with 320×480 resolution and ST7796S driver IC. Intended for industrial control panels, handheld devices and embedded HMI, the module uses an a-Si TN positive transmissive panel optimized for 12 O'Clock viewing to ensure clear front-view readability and stable luminance in fixed-orientation applications. The SPI interface facilitates MCU-based integration for cost-effective embedded systems.

Key specifications

• Model: YX39501B
• Display size: 3.95 inch
• Resolution: 320 (RGB) × 480
• LCD type: a-Si TFT-LCD, Positive Transmissive (TN)
• Active area: 55.68 × 83.52 mm
• Outline dimensions: 60.20 × 94.00 × 2.39 mm
• Pixel pitch: 0.174 × 0.174 mm
• Viewing direction: 12 O'Clock
• Driver IC: ST7796S
• Interface: SPI

Mechanical & integration
Outline dimensions and mechanical drawings are provided for panel cut-out and mounting. The 2.39 mm module thickness supports slim embedded designs; consult the mechanical drawing for connector placement and fixing points.

Optical & performance

• Resolution: 320 × 480
• Typical luminance: 300 cd/m²
• Contrast ratio: 500:1
• Color gamut: 60%
• Response time: 16 ms
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 60° (L/R/U), 55° (D)

Environmental conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Industrial control panels and embedded HMI systems
• Handheld and portable instruments
• Meters, medical terminals and other fixed-orientation displays
