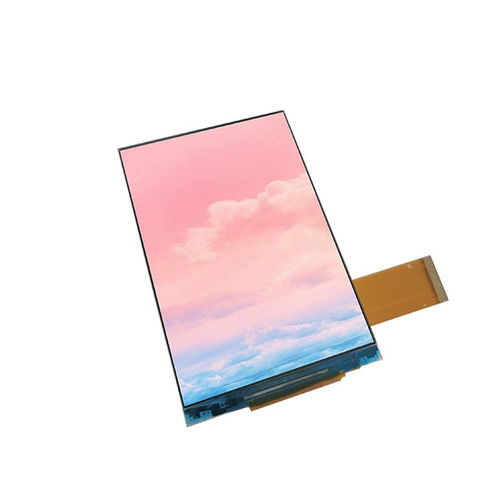

TFT LCD display module YX35025A

IPScolor320 x 480

Product Overview
The Yousee YX35025A is a 3.5-inch IPS TFT LCD display module with 320×480 resolution and dual 3SPI + RGB18-bit interface, driven by the ILI9488 IC. It is intended for industrial control panels, medical terminals, POS systems and embedded HMI applications. The module supports MCU SPI control and high-speed RGB video input for flexible system integration.

Key Features

• Display size: 3.5 inch
• Resolution: 320 (RGB) × 480
• LCD type: IPS TFT-LCD, transmissive
• Wide-view IPS technology with All-O'Clock viewing direction
• Driver IC: ILI9488
• Dual interface: 3SPI + RGB18-bit (MCU SPI control and high-speed RGB)
• Typical applications: industrial control, medical terminals, POS systems, embedded HMI, handheld devices

Basic Specifications (table)
Display size: 3.5 inch
LCD type: IPS TFT-LCD, transmissive
Resolution: 320 (RGB) × 480
Active area: 48.96 × 73.44 mm
Outline dimensions: 54.48 × 84.71 × 2.30 mm
Pixel pitch: 0.08625 × 0.08625 mm
Viewing direction: All-O'Clock
Driver IC: ILI9488
Interface: 3SPI + RGB18-bit

Optical Characteristics (table)
Resolution: 320 × 480
Contrast ratio: 800 : 1 (typ.)
Color gamut: 60% (typ.)
Luminance: 300 cd/m² (typ.)
Luminance uniformity: 80%
Viewing angle (CR ≥ 10): 80° (all directions)
Response time: 25 ms (typ.)

Operating Conditions (table)
Operating temperature: -20°C to +70°C
Storage temperature: -30°C to +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical Drawing
Mechanical drawing and product images are provided for dimensional reference and integration planning.

Technical specifications

• Model: YX35025A
• Display size: 3.5 inch
• Resolution: 320×480 (RGB)
• Active area: 48.96 × 73.44 mm
• Outline dimensions: 54.48 × 84.71 × 2.30 mm
• Pixel pitch: 0.08625 × 0.08625 mm
• LCD type: IPS TFT-LCD, transmissive
• Viewing direction: All-O'Clock (wide viewing)
• Driver IC: ILI9488
• Interface: 3SPI + RGB18-bit (dual-interface)
• Luminance (typ.): 300 cd/m²
• Contrast ratio (typ.): 800:1
• Color gamut (typ.): 60%
• Response time (typ.): 25 ms
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
