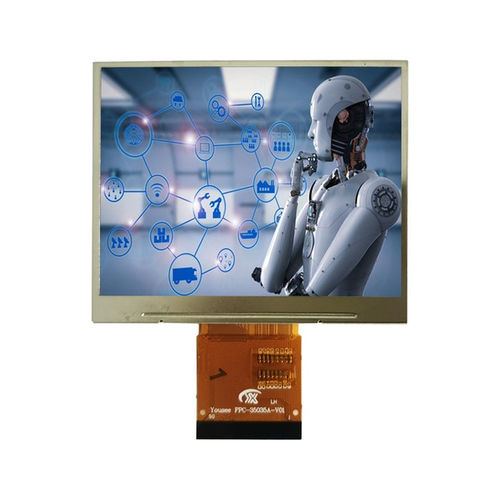

TFT LCD display module YX35035A

TNcolor320 x 240

Product Overview
The YX35035A is a 3.5-inch TFT LCD display module with 320×240 resolution supporting multiple interfaces (8080/6800 MCU parallel, SPI, RGB). Designed for industrial control panels, handheld terminals and embedded systems, it features a TN transmissive panel with 6 O'Clock viewing direction, SSD2119 driver IC and compact outline for straightforward integration.

Key Features

• Display size: 3.5 inch
• Resolution: 320 (RGB) × 240
• LCD type: TN TFT-LCD, transmissive
• Viewing direction: 6 O'Clock (optimized for front-facing applications)
• Driver IC: SSD2119
• Interfaces: 8080 / 6800 MCU, SPI, RGB (multi-interface support)
• Suitable for industrial control panels, handheld terminals and embedded systems

Basic Specifications
Display Size: 3.5 inch
LCD Type: TN TFT-LCD, Transmissive
Resolution: 320 (RGB) × 240
Active Area: 70.08 × 52.56 mm
Outline Dimensions: 76.9 × 63.9 × 3.1 mm
Pixel Pitch: 0.219 × 0.219 mm
Viewing Direction: 6 O'Clock
Driver IC: SSD2119
Interface: 8080 / 6800 MCU, SPI, RGB

Optical Characteristics
Resolution: 320 × 240
Contrast Ratio: 800 : 1
Color Gamut: 60%
Luminance: 350 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 70° (L/R), 70° (U), 60° (D)
Response Time: 25 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Technical specifications

• Model: YX35035A
• Display size: 3.5 inch
• Resolution: 320×240 (RGB)
• LCD type: TN, transmissive
• Active area: 70.08 × 52.56 mm
• Outline dims: 76.9 × 63.9 × 3.1 mm
• Pixel pitch: 0.219 × 0.219 mm
• Viewing direction: 6 O'Clock
• Driver IC: SSD2119
• Interface: 8080 / 6800 MCU, SPI, RGB
• Contrast ratio: 800:1
• Color gamut: 60%
• Luminance: 350 cd/m²
• Luminance uniformity: 80%
• Viewing angle: 70° (L/R), 70° (U), 60° (D)
• Response time: 25 ms
• Operating temp: -20°C ~ +70°C
• Storage temp: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
