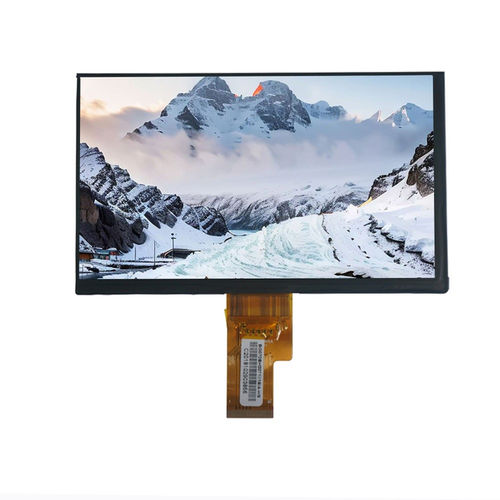

TFT LCD display module YX133B54-111-1901

colorgraphic1920 x 1080

Overview
Yousee YX133B54-111-1901 is a 13.3-inch Full HD (1920×1080) TFT-LCD display module with an eDP interface and a reverse-fold FPC design. Engineered for industrial monitors, embedded systems, medical equipment and professional displays that require a slim profile and consistent image performance. The FHD resolution ensures fine detail and clear text rendering; Normally Black mode provides balanced contrast for professional viewing. Typical brightness is 330 cd/m², suitable for indoor and semi-industrial environments.

Key features

• 13.3-inch FHD (1920×1080) TFT-LCD
• eDP interface
• Reverse-fold FPC for slim mechanical integration
• Display mode: Normally Black
• Brightness: 330 cd/m² (typical)
• Pixel arrangement: RGB vertical stripe
• Wide viewing angle (All-O'Clock)
• Typical contrast ratio: 1000:1

Basic specifications

• Model: YX133B54-111-1901
• Display size: 13.3 inch
• Resolution: 1920 × 1080 (FHD)
• Active area: 293.76 × 165.24 mm
• Outline dimensions: 307.20 × 181.00 × 3.20 mm
• Pixel pitch: 0.153 × 0.153 mm
• FPC type: Reverse Fold
• Panel type: 13.3" TFT-LCD, transmissive, Normally Black

Optical characteristics

• Brightness (typical): 330 cd/m²
• Contrast ratio (typical): 1000:1
• Color gamut (typical): 72% NTSC
• Viewing angle (CR ≥ 10): 85° / 85° / 85° / 85°
• Response time (typical): 30 ms

Operating conditions

• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C

Applications

• Industrial monitors and HMIs
• Embedded systems and panel PCs
• Medical devices and diagnostic displays
• Professional display units and multimedia terminals
