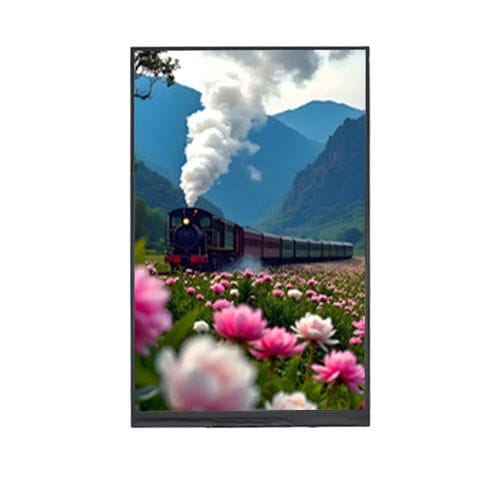

TFT LCD display module YX08017482717NA

TNcolor1024 x 768

Overview
The YX08017482717NA is an 8.0-inch TFT-LCD display module by Yousee with 1024×768 (XGA) resolution and an LVDS interface. It is intended for industrial control systems, HMI panels, medical equipment and embedded displays that require stable signal transmission and predictable long-term performance. The XGA resolution delivers balanced screen proportions and clear detail for data visualization and graphical user interfaces, while the LVDS interface supports high signal integrity in electrically noisy environments.

Key Features

• Display size: 8.0 inch
• Resolution: 1024 (RGB) × 768 (XGA)
• Interface: LVDS
• LCD type: TFT-LCD, transmissive
• Display mode: Normally Black
• Viewing direction: 6 o'clock (TN)
• Backlight: White LED

Technical specifications

• Product code: YX08017482717NA
• Brand: Yousee
• Active area: 162.05 × 121.54 mm
• Outline dimensions: 170.60 × 136.40 × 3.80 mm
• Pixel pitch: 0.15825 × 0.15825 mm
• Pixel arrangement: RGB vertical stripe
• Contrast ratio (typical): 700 : 1
• Luminance (typical): 300 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 70° / 70° / 60° / 70°
• Response time (typical): 25 ms
• Operating temperature: -10°C ~ +60°C
• Storage temperature: -20°C ~ +70°C

Optical characteristics
The module provides XGA resolution with a typical contrast ratio of 700:1 and typical luminance of 300 cd/m². Viewing angles and uniformity are specified for integration in fixed installations and instrument panels.

Operating conditions
Designed for standard industrial ambient ranges: operating -10°C to +60°C, storage -20°C to +70°C. Refer to manufacturer data for thermal derating and backlight lifetime under continuous operation.

Mechanical & integration
Outline dimensions and mechanical drawings are provided for panel cut-out and mounting reference. The thin 3.80 mm profile suits embedded housings and space-constrained control cabinets.

Applications

• Industrial control and automation panels
• HMI and operator interfaces
• Medical devices with embedded displays
• Embedded systems and instrumentation
