TFT LCD display module YX35044A

IPScolorgraphic

Overview

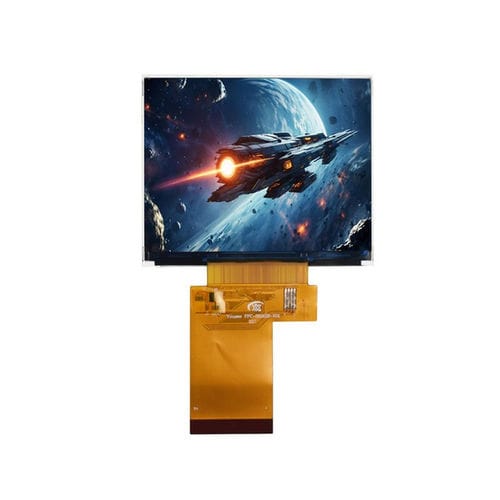

The YX35044A is a 3.5-inch high-resolution TFT LCD module by Yousee, designed for industrial control, handheld devices and embedded systems. Featuring 320×480 resolution and the ILI9488 driver IC, the module provides IPS wide viewing angles, stable visual performance and multiple interface options (RGB, MCU, SPI), suitable for HMI and portable display applications.

Basic Specifications
Display Size — 3.5 inch
Resolution — 320 (RGB) × 480
LCD Type — TFT-LCD, Transmissive
Active Area — 48.96 × 73.44 mm
Outline Dimensions — 54.5 × 82.9 × 2.15 mm
Pixel Pitch — 0.1968 × 0.1968 mm
Viewing Direction — IPS (All viewing angle)
Driver IC — ILI9488
Interface — RGB / MCU / SPI

Mechanical Drawing
Mechanical drawings and mounting dimensions are available from the manufacturer for integration and enclosure design.

Optical Characteristics
Resolution — 320 × 480
Contrast Ratio — 800 : 1
Color Gamut — 60%
Luminance Uniformity — 80%
Viewing Angle — 80° (L) / 80° (R) / 80° (U) / 80° (D)
Brightness — 500 cd/m²
Response Time — 25 ms

Operating Conditions
Operating Temperature — -20°C ~ +70°C
Storage Temperature — -30°C ~ +80°C
Humidity — ≤ 90% RH

Technical specifications

• Model: YX35044A
• Display Size: 3.5 inch
• Resolution: 320 (RGB) × 480
• LCD Type: TFT-LCD, Transmissive
• Active Area: 48.96 × 73.44 mm
• Outline Dimensions: 54.5 × 82.9 × 2.15 mm
• Pixel Pitch: 0.1968 × 0.1968 mm
• Viewing Direction: IPS (All viewing angle)
• Driver IC: ILI9488
• Interface: RGB / MCU / SPI
• Contrast Ratio: 800:1
• Color Gamut: 60%
• Luminance Uniformity: 80%
• Viewing Angle: 80°/80°/80°/80° (L/R/U/D)
• Brightness: 500 cd/m²
• Response Time: 25 ms
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C
• Humidity: ≤ 90% RH
