TFT LCD display module YX50036A

IPScolor800 x 480

Overview

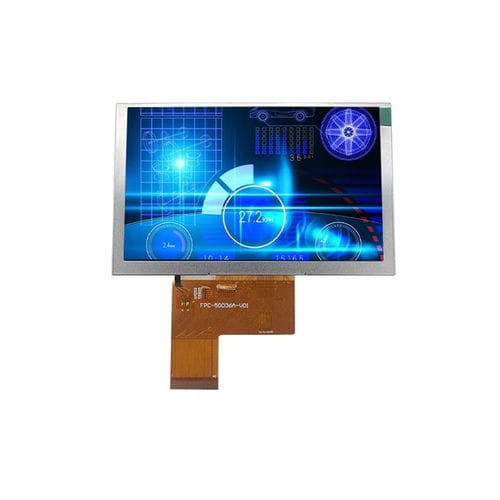

The YX50036A by Yousee is a 5.0-inch IPS TFT LCD display module with 800×480 (WVGA) resolution and a 24-bit RGB interface. Engineered for industrial control panels, embedded HMI systems and professional equipment, the IPS panel with All-O'Clock wide viewing angle delivers consistent color reproduction, stable contrast and clear visibility from multiple directions. The ST7262A driver IC ensures reliable RGB signal handling and stable performance under continuous operation. Its compact WVGA format balances screen size, clarity and system compatibility for automation and embedded applications.

Basic Specifications

• Model: YX50036A
• Display size: 5.0 inch
• LCD type: IPS TFT-LCD, transmissive
• Resolution: 800 (RGB) × 480 (WVGA)
• Active area: 108.0 × 64.8 mm
• Outline dimensions: 120.7 × 75.8 × 3.0 mm
• Pixel pitch: 0.135 × 0.135 mm
• Interface: 24-bit RGB
• Driver IC: ST7262A
• Viewing direction: All-O'Clock (IPS)

Optical Characteristics

• Resolution (typ.): 800 × 480
• Contrast ratio (typ.): 600:1
• Color gamut (typ.): 60%
• Luminance (typ.): 300 cd/m²
• Luminance uniformity (typ.): 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time (typ.): 25 ms

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Intended Applications

• Industrial control panels
• Embedded HMI systems
• Automation terminals
• Handheld instruments and professional equipment

Technical Specifications

• Driver IC: ST7262A
• Pixel pitch: 0.135 × 0.135 mm
• Active area: 108.0 × 64.8 mm
• Outline: 120.7 × 75.8 × 3.0 mm
• Contrast ratio: 600:1
• Luminance: 300 cd/m² (typ.)
• Color gamut: 60%
• Response time: 25 ms
• Interface: 24-bit RGB
