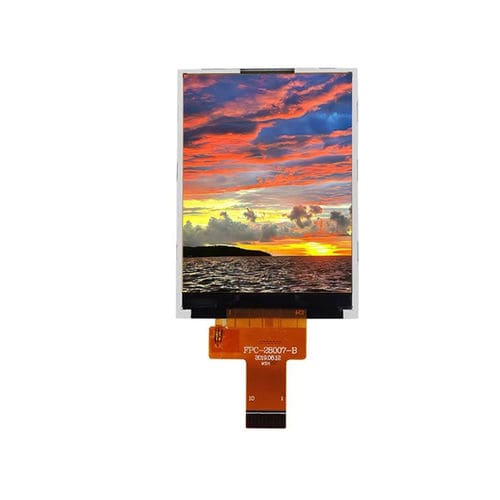

TFT LCD display module YX28005A

IPScolor240 x 320

Product Overview
The YX28005A is a 2.8-inch IPS transmissive TFT LCD module with 240×320 resolution, wide viewing angles and stable color reproduction. Driven by the ST7789V IC and using an SPI interface, it is designed for straightforward integration into HMI panels, industrial controllers and portable instrumentation, offering low power consumption and reliable operation.

Basic Specifications
Display Size: 2.8 inch
LCD Type: IPS TFT-LCD, Transmissive
Resolution: 240 (RGB) × 320
Active Area: 43.20 × 57.60 mm
Outline Dimensions: 50.00 × 69.20 × 2.30 mm
Pixel Pitch: 0.180 × 0.180 mm
Viewing Direction: IPS wide view
Driver IC: ST7789V
Interface: SPI

Mechanical Drawing
Mechanical drawings and dimension diagrams are provided to support mounting and enclosure design. Refer to the product images and datasheet for detailed dimension views.

Optical Characteristics
Resolution: 240 × 320
Contrast Ratio: 500 : 1
Color Gamut: 60%
Luminance: 300 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 80° (all directions)
Response Time: 16 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Technical specifications

• Model: YX28005A
• Display size: 2.8 inch
• Resolution: 240×320 (RGB)
• LCD type: IPS transmissive TFT
• Active area: 43.20 × 57.60 mm
• Outline dimensions: 50.00 × 69.20 × 2.30 mm
• Pixel pitch: 0.180 × 0.180 mm
• Viewing direction: IPS wide view
• Driver IC: ST7789V
• Interface: SPI
• Luminance: 300 cd/m²
• Contrast ratio: 500 : 1
• Color gamut: 60%
• Response time: 16 ms
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
