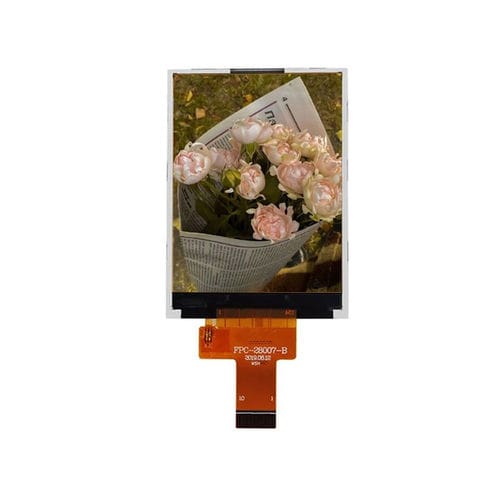

TFT LCD display module YX30002A

IPScolor480 x 854

Product Overview
The YX30002A is a 2.95-inch IPS TFT-LCD module with 480×854 RGB resolution and a 2‑lane MIPI DSI interface. Engineered for Android‑ and Linux‑based platforms and high‑end embedded systems, it provides wide viewing angles and smartphone‑class pixel density for sharp text and vivid graphics, suitable for smart terminals, medical handhelds, POS and advanced HMI devices.

Key Features

• Display size: 2.95 inch
• Resolution: 480 (RGB) × 854
• LCD type: IPS TFT-LCD (transmissive)
• Viewing direction: All O’Clock (full viewing angle)
• Driver IC: ST7701S
• Interface: 2‑lane MIPI DSI
• Backlight: 4 × White LED (4S1P)
• Smartphone-class pixel density for crisp UI and graphics

Technical Specifications

• Model: YX30002A
• Active area: 36.72 × 65.28 mm
• Outline dimensions: 43.44 × 75.31 × 2.60 mm
• Pixel pitch: 0.08625 × 0.08625 mm
• LCM input voltage: 2.6 ~ 3.3 V (Typ. 2.75 V)
• Contrast ratio: 800:1
• Color gamut: 60%
• Response time: 25 ms

Optical & Performance

• Typical luminance: 300 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)

Operating Conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Smart terminals and IoT devices
• Medical handheld and portable instruments
• POS terminals and payment systems
• Advanced HMI and embedded interfaces

Model / Technical details

• Driver IC: ST7701S
• Interface: 2‑Lane MIPI DSI
• Backlight configuration: White LED × 4 (4S1P)
• Suitable for Android/Linux/high‑end embedded designs
