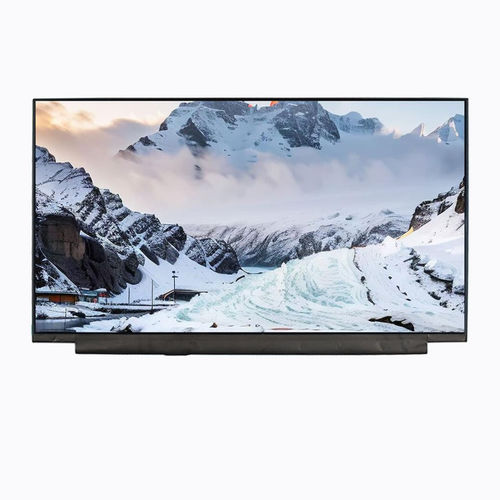

TFT LCD display module YX21520376811FA-LP8

IPScolor1920 x 1080

Product Overview
The YX21520376811FA-LP8 by Yousee is a 21.5-inch IPS TFT-LCD display module with 1920×1080 (Full HD) resolution and an LVDS interface. It is engineered for industrial monitors, HMI panels, embedded display platforms and professional visualization equipment that require wide viewing angles, stable long-term operation and reliable signal transmission.

Key Features

• 21.5" Full HD (1920×1080) IPS TFT-LCD, transmissive
• All-O'Clock viewing direction (wide viewing angles with consistent brightness and color)
• LVDS interface for robust signal transmission and improved EMI tolerance in industrial environments
• White LED backlight
• Normally Black display mode; RGB vertical stripe pixel arrangement

Basic Specifications (table)
Display Size: 21.5 inch
LCD Type: IPS TFT-LCD, Transmissive
Display Mode: Normally Black
Resolution: 1920 (RGB) × 1080
Active Area: 476.06 × 267.79 mm
Outline Dimensions: 495.60 × 292.20 × 11.50 mm
Pixel Pitch: 0.24825 × 0.24825 mm
Pixel Arrangement: RGB Vertical Stripe
Viewing Direction: All-O'Clock (IPS)
Interface: LVDS
Backlight: White LED

Optical Characteristics (table)
Resolution (typical): 1920 × 1080
Contrast Ratio (typical): 1000 : 1
Color Gamut (typical): 72% NTSC
Luminance (typical): 250 cd/m²
Luminance Uniformity (typical): 80%
Viewing Angle (CR ≥ 10): 85° / 85° / 85° / 85°
Response Time (typical): 30 ms

Operating Conditions (table)
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~ +60°C

Mechanical Drawing
Outline dimensions and mechanical drawing provided for integration and mounting reference: outline 495.60 × 292.20 × 11.50 mm; active area 476.06 × 267.79 mm.

Application Notes

• Designed for industrial monitors, HMIs, embedded platforms and professional visualization equipment.
• LVDS interface is recommended for electrically noisy industrial settings due to robust signal transmission and EMI resilience.
• IPS technology ensures stable contrast and accurate colors across wide viewing angles—suitable for operator panels and control rooms.

Technical Specifications

• Model: YX21520376811FA-LP8
• Brand: Yousee
• Display Size: 21.5 inch
• Resolution: 1920 (RGB) × 1080 (Full HD)
• LCD Type: IPS TFT-LCD, Transmissive
• Display Mode: Normally Black
• Viewing Direction: All-O'Clock (IPS)
• Interface: LVDS
• Active Area: 476.06 × 267.79 mm
• Outline Dimensions: 495.60 × 292.20 × 11.50 mm
• Pixel Pitch: 0.24825 × 0.24825 mm
• Pixel Arrangement: RGB Vertical Stripe
• Backlight: White LED
• Contrast Ratio: 1000 : 1 (typical)
• Color Gamut: 72% NTSC (typical)
• Luminance: 250 cd/m² (typical)
• Luminance Uniformity: 80% (typical)
• Viewing Angle (CR ≥ 10): 85° / 85° / 85° / 85°
• Response Time: 30 ms (typical)
• Operating Temperature: 0°C ~ +50°C
• Storage Temperature: -20°C ~ +60°C
