TFT LCD display module YX07022542716H series

IPScolor1024 x 600

Product Overview

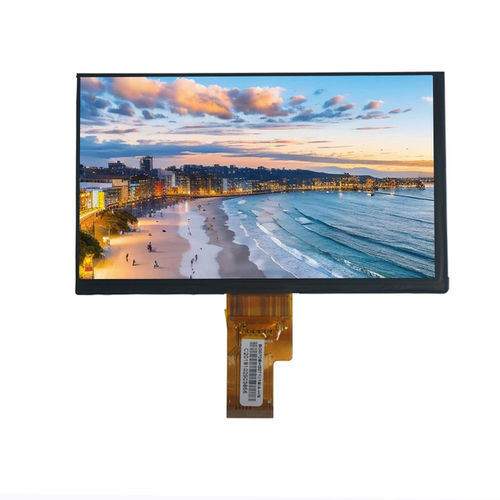

The YX07022542716HB is a 7.0-inch IPS TFT LCD display module featuring 1024×600 (WSVGA) resolution and an LVDS interface, developed for industrial control systems, HMI panels, embedded equipment and professional display applications. With IPS technology and All-O'Clock wide viewing angle, the display delivers consistent color performance, stable contrast and clear visibility from all directions. The LVDS interface ensures stable signal transmission and strong noise immunity, supporting long-term operation in industrial and embedded environments. Its standard 7-inch form factor allows easy mechanical integration into existing system designs.

Key Features

• Display size: 7.0 inch
• Resolution: 1024 (RGB) × 600 (WSVGA)
• IPS TFT-LCD, transmissive type for wide viewing angles and stable color
• All-O'Clock viewing direction (wide viewing)
• Normally Black display mode
• LVDS interface for stable signal transmission and noise immunity
• White LED backlight
• Designed for industrial HMI, embedded systems and professional displays

Basic Specifications
Display Size: 7.0 inch
LCD Type: IPS TFT-LCD, Transmissive
Display Mode: Normally Black
Resolution: 1024 (RGB) × 600
Active Area: 154.21 × 85.92 mm
Outline Dimensions: 164.9 × 100.0 × 2.8 mm
Pixel Pitch: 0.1926 × 0.1926 mm
Viewing Direction: All-O'Clock (IPS)
Interface: LVDS
Backlight: White LED

Mechanical Drawing
Mechanical drawings and dimension images are provided for integration and mounting reference (dimension images available on product page).

Optical Characteristics
Resolution: 1024 × 600
Contrast Ratio: 800 : 1
Color Gamut: 60%
Luminance: 300 cd/m²
Luminance Uniformity: 80%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time: 25 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Available Variants

• YX07022542716HB (base)
• YX07022542716HBCT2 (variant)
• YX07022542716HBRT (variant)

Technical Specifications

• Model family: YX0702 series
• Screen size: 7.0 inch
• Resolution: 1024×600 (WSVGA)
• Panel type: IPS TFT-LCD (transmissive)
• Interface: LVDS
• Backlight: White LED
• Active area: 154.21 × 85.92 mm
• Outline dimensions: 164.9 × 100.0 × 2.8 mm
• Pixel pitch: 0.1926 × 0.1926 mm
• Viewing direction: All-O'Clock
• Contrast ratio: 800:1
• Luminance: 300 cd/m²
• Response time: 25 ms
• Operating temp: -20°C to +70°C
• Storage temp: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
