TFT LCD display module YX50092A

IPScolorgraphic

Product Overview

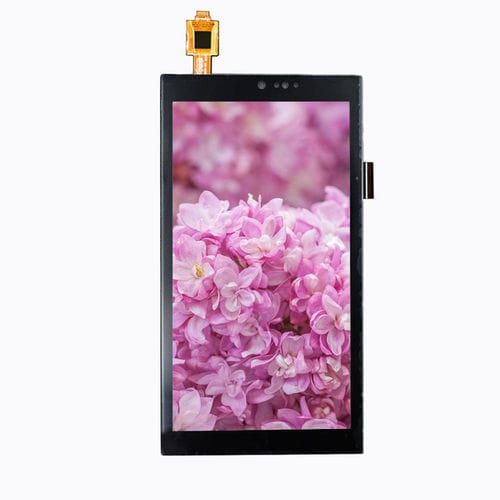

The YX50092A is a 5.0-inch TFT-LCD display module with 720×1280 HD resolution in a portrait format. It provides high pixel density and All-O’Clock (IPS) viewing for consistent visibility across multiple angles. Designed for handheld terminals, industrial HMI, smart devices and embedded systems, the module supports a 3-wire SPI for control and a 24-bit RGB interface for video data, enabling flexible integration with MCUs and SoCs. Its slim 1.7 mm module thickness and compact outline facilitate space-constrained installations and modern UI layouts.

Basic Specifications
Display Size: 5.0 inch
LCD Type: TFT-LCD, Transmissive
Resolution: 720 (RGB) × 1280
Active Area: 62.1 × 110.4 mm
Outline Dimensions: 64.8 × 118.63 × 1.7 mm
Pixel Pitch: 0.0945 × 0.0945 mm
Viewing Direction: All-O’Clock (IPS / All directions viewing)
Interface: 3-wire SPI + 24-bit RGB

Optical Characteristics
Resolution (typical): 720 × 1280
Contrast Ratio (typical): 800 : 1
Color Gamut (typical): 60%
Luminance (typical): 450 cd/m²
Luminance Uniformity (typical): 80%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time (typical): 25 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Mechanical Drawing & Images
Compact mechanical design with module thickness ~1.7 mm. Mechanical drawing and dimension images available for integration and mounting reference.

Applications
Intended for handheld terminals, industrial HMI, smart devices and embedded display systems requiring a high-pixel-density portrait display with SPI + RGB interface.

Technical specifications

• Model: YX50092A
• Display Size: 5.0 inch
• Resolution: 720 (RGB) × 1280
• LCD Type: TFT-LCD, Transmissive
• Active Area: 62.1 × 110.4 mm
• Outline Dimensions: 64.8 × 118.63 × 1.7 mm
• Pixel Pitch: 0.0945 × 0.0945 mm
• Interface: 3-wire SPI + 24-bit RGB
• Viewing Direction: All-O’Clock / IPS, 80° (All directions)
• Contrast Ratio: 800 : 1 (typical)
• Color Gamut: 60% (typical)
• Luminance: 450 cd/m² (typical)
• Luminance Uniformity: 80% (typical)
• Response Time: 25 ms (typical)
• Operating Temp: -20°C ~ +70°C
• Storage Temp: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
• Module Thickness: ~1.7 mm
