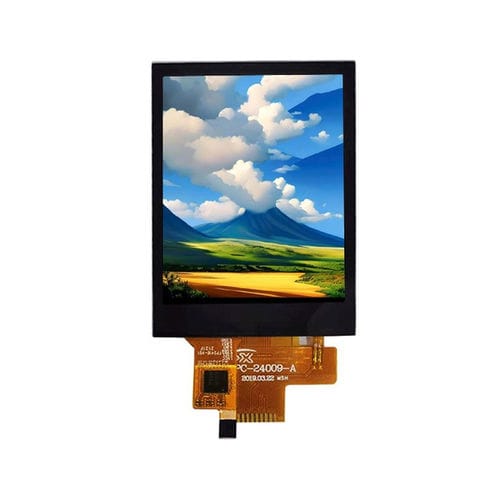

TFT LCD display module YX24009A

IPScolor240 x 320

Product overview
The YX24009A is a 2.4-inch IPS transmissive TFT LCD module with 240×320 resolution, wide viewing angles and stable color performance. It is driven by the ST7789V IC and uses an SPI interface for straightforward integration with MCU-based and embedded systems. The module is designed for HMI, handheld devices, portable instruments, medical equipment, industrial controllers and smart terminals.

Key specifications

• Model: YX24009A
• Brand: Yousee
• Display size: 2.4 inch (Active area: 36.72 × 48.96 mm)
• Resolution: 240 (RGB) × 320
• LCD type: IPS TFT-LCD, transmissive
• Driver IC: ST7789V
• Interface: SPI
• Outline dimensions: 42.72 × 60.26 × 2.45 mm
• Pixel pitch: 0.153 × 0.153 mm
• Backlight: 4 × white LED
• LCM input voltage: 2.8 ±0.1 V

Optical characteristics

• Contrast ratio: 800:1
• Color gamut: 70%
• Luminance: 250 cd/m²
• Luminance uniformity: 80%
• Viewing angle (CR ≥ 10): 80° (all directions)
• Response time: 16 ms

Mechanical and environmental

• Outline: 42.72 × 60.26 × 2.45 mm
• Active area: 36.72 × 48.96 mm
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Human-Machine Interfaces (HMI) and handheld devices
• Portable instruments
• Medical devices
• Industrial controllers
• Smart terminals
