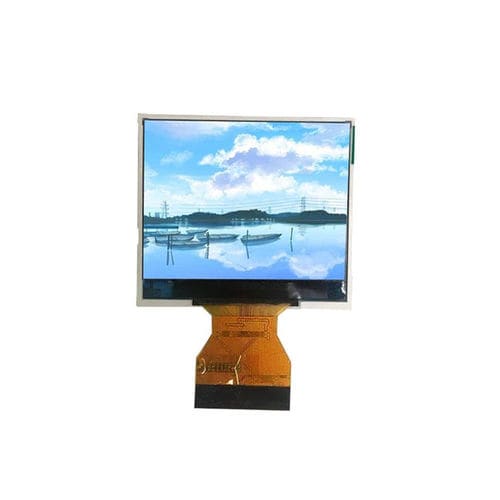

TFT LCD display module YX20013A

IPStouch screencolor

Product overview
The YX20013A is a 2.0-inch IPS transmissive TFT LCD touch display module with 320×240 (RGB) resolution. It integrates the ILI9342C driver IC, supports 3SPI + RGB interface and uses a 3× white LED backlight. The module is designed for MCU-based systems and embedded processors where a compact, wide-view touch display is required.

Key specifications

• Model: YX20013A
• Display size: 2.0 inch
• Resolution: 320 × 240 (RGB)
• Active area: 40.8 × 30.6 mm
• Outline dimensions: 46.1 × 40.96 × 2.53 mm
• Pixel pitch: 0.1275 × 0.1275 mm
• LCD type: IPS TFT-LCD, transmissive
• Viewing direction: IPS wide view
• Driver IC: ILI9342C
• Interface: 3SPI + RGB
• Backlight: 3 × white LEDs
• Contrast ratio: 800:1 (typical)
• Color gamut: 60% (typical)
• Luminance: 300 cd/m² (typical)
• Luminance uniformity: 80% (typical)
• Response time: 25 ms (typical)

Mechanical drawing
Mechanical dimensions: 46.1 × 40.96 × 2.53 mm. Active area: 40.8 × 30.6 mm. Mechanical drawing and connector locations are provided for integration and mounting reference.

Optical characteristics

• Contrast ratio: 800:1 (typical)
• Color gamut: 60% (typical)
• Luminance: 300 cd/m² (typical)
• Luminance uniformity: 80% (typical)
• Response time: 25 ms (typical)

Electrical characteristics

• Analog supply voltage (VCC): 3.3 V
• Input high level: ≥ 0.7 × IOVCC
• Input low level: ≤ 0.3 × IOVCC

Operating conditions

• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)

Applications

• Industrial control panels and HMIs
• Medical handheld instruments
• Smart terminals and portable devices
• Embedded systems and development platforms

Ordering information
Model: YX20013A. Datasheet, mechanical drawings and customization options (touch type, interface configuration) are available on request. Contact the supplier for lead times and volume pricing.
