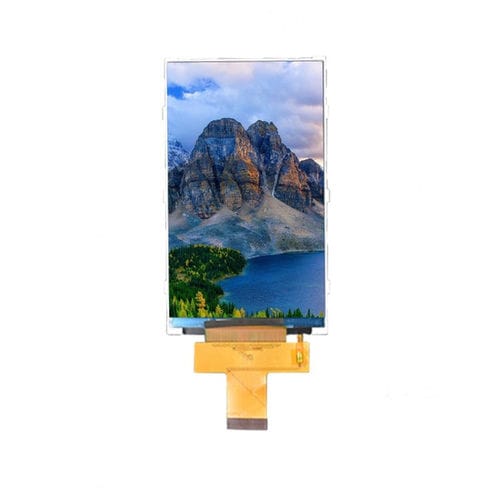

TFT LCD display module YX43027A

TNcolor480 x 272

Product Overview
The Yousee YX43027A is a 4.3-inch TFT LCD module with 480×272 resolution and a standard RGB interface. Driven by the ILI6485 IC, it is designed for industrial control panels, embedded devices and HMI applications requiring a compact color display with consistent optical performance. Typical luminance is 450 cd/m² and contrast ratio 1000:1, offering reliable visibility in indoor and industrial environments.

Key Features

• Display Size: 4.3 inch
• Resolution: 480 (RGB) × 272
• LCD Type: TFT-LCD, Transmissive
• Viewing Direction: 6 O’Clock (TN)
• Driver IC: ILI6485
• Interface: RGB

Basic Specifications
Display Size — 4.3 inch
LCD Type — TFT-LCD, Transmissive
Resolution — 480 (RGB) × 272
Active Area — 95.04 × 53.856 mm
Outline Dimensions — 105.5 × 67.2 × 2.95 mm
Pixel Pitch — 0.198 × 0.198 mm
Viewing Direction — 6 O’Clock
Driver IC — ILI6485
Interface — RGB

Optical Characteristics
Resolution — 480 × 272
Contrast Ratio — 1000 : 1 (typical)
Color Gamut — 60% (typical)
Luminance — 450 cd/m² (typical)
Luminance Uniformity — 80% (typical)
Viewing Angle (CR ≥ 10) — 70° / 70° / 50° / 70°
Response Time — 25 ms (typical)

Operating Conditions
Operating Temperature — -20°C ~ +70°C
Storage Temperature — -30°C ~ +80°C
Humidity — ≤ 90% RH (60°C)

Technical Specifications

• Model: YX43027A
• Brand: Yousee
• Display size: 4.3 inch
• Resolution: 480 × 272 (RGB)
• Active area: 95.04 × 53.856 mm
• Outline dimensions: 105.5 × 67.2 × 2.95 mm
• Pixel pitch: 0.198 × 0.198 mm
• LCD type: TFT-LCD, Transmissive
• Viewing direction: 6 O’Clock (TN)
• Driver IC: ILI6485
• Interface: RGB
• Luminance: 450 cd/m² (typical)
• Contrast ratio: 1000:1 (typical)
• Color gamut: 60% (typical)
• Viewing angle (CR≥10): 70°/70°/50°/70°
• Response time: 25 ms (typical)
• Operating temperature: -20°C to +70°C
• Storage temperature: -30°C to +80°C
• Humidity: ≤ 90% RH (60°C)
