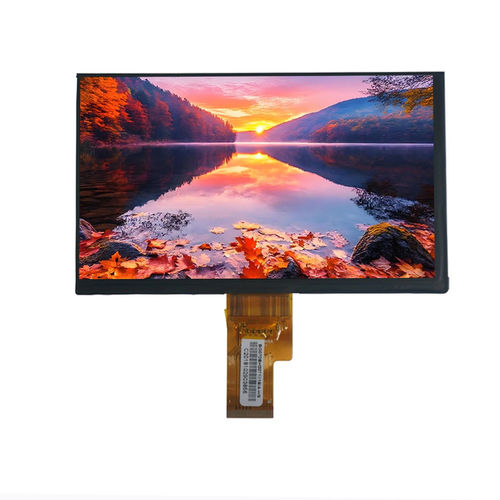

TFT LCD display module YXM116B40-121-0102

IPScolor1920 x 1080

Product Overview
The YXM116B40-121-0102 is an 11.6-inch Full HD (1920×1080) TFT-LCD open-cell display with an eDP interface, intended for industrial monitors, embedded display systems, medical equipment and customized display solutions where backlight and enclosure are integrated by the system designer. As an open-cell panel it is provided without backlight so customers can integrate custom backlight units, optical films, cover glass or touch panels according to project requirements.

Key Features

• 11.6 inch FHD (1920 × 1080) resolution
• TFT-LCD open cell, transmissive (backlight not included)
• eDP interface for high-speed signal transmission
• IPS (All-O’Clock) wide viewing angles
• Normally Black display mode with RGB vertical stripe pixel arrangement
• Designed for system integration: supports custom backlight, optical films, cover glass and touch sensors

Basic Specifications
Display Size: 11.6 inch
LCD Type: TFT-LCD Open Cell, Transmissive
Display Mode: Normally Black
Resolution: 1920 (RGB) × 1080
Active Area: 256.32 × 144.18 mm
Outline Dimensions: 267.72 × 157.77 × 1.50 mm
Pixel Pitch: 0.1335 × 0.1335 mm
Pixel Arrangement: RGB Vertical Stripe
Viewing Direction: All-O’Clock (IPS)
Interface: eDP
Backlight: Not Included (Open Cell)

Optical Characteristics
Resolution (typical): 1920 × 1080
Contrast Ratio (typical): 1000 : 1
Color Gamut (typical): 72% NTSC
Viewing Angle (CR ≥ 10) (typical): 85° / 85° / 85° / 85°
Response Time (typical): 30 ms

Operating Conditions
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~ +60°C

Mechanical / Notes
Open-cell panel (no backlight included) intended for system integrators who will supply backlight, cover lens, touch sensor and final housing. Active area and outline dimensions are provided for mechanical integration.

Technical Specifications

• Model: YXM116B40-121-0102
• Display Size: 11.6 inch
• Resolution: 1920 × 1080 (FHD)
• Panel Type: TFT-LCD Open Cell, Transmissive
• Interface: eDP
• Active Area: 256.32 × 144.18 mm
• Outline Dimensions: 267.72 × 157.77 × 1.50 mm
• Pixel Pitch: 0.1335 × 0.1335 mm
• Pixel Arrangement: RGB Vertical Stripe
• Viewing Angle: IPS / All-O'Clock, 85° / 85° / 85° / 85°
• Contrast Ratio: 1000:1
• Color Gamut: 72% NTSC
• Response Time: 30 ms
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +60°C
• Backlight: Not included (open cell)
