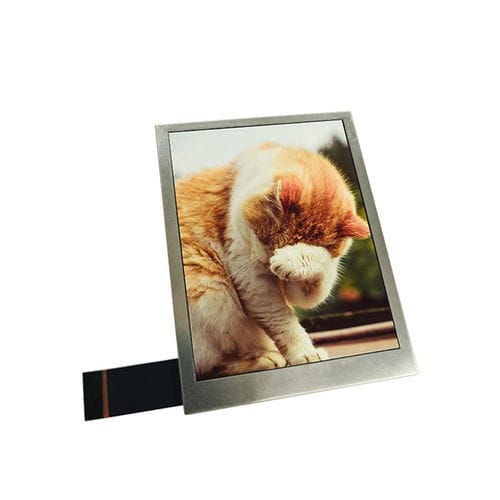

TFT LCD display module YX35031A

IPScolorgraphic

Product Overview
The YX35031A from Yousee is a 3.5-inch a-Si TFT-LCD display module with 480×640 RGB resolution, supporting RGB18-bit video input and SPI control. Intended for industrial HMI, medical devices, smart terminals and embedded platforms, it combines high pixel density with an All-O'Clock wide IPS viewing angle for clear text and detailed graphics from any direction. Driven by the HX8363A IC, the module offers RGB video at high speed plus SPI for flexible integration and is well suited to Android-style UIs, Linux systems and professional embedded interfaces requiring more vertical resolution than QVGA/WQVGA panels.

Basic Specifications
Display Size: 3.5 inch
LCD Type: a-Si TFT-LCD, Transmissive
Resolution: 480 (RGB) × 640
Active Area: 53.28 × 71.04 mm
Outline Dimensions: 64.00 × 85.00 × 3.00 mm
Pixel Pitch: 0.111 × 0.111 mm
Viewing Direction: IPS (All-O'Clock)
Driver IC: HX8363A
Interface: RGB18-bit + SPI

Optical Characteristics
Resolution: 480 × 640
Contrast Ratio: 500 : 1
Color Gamut: 50% NTSC
Luminance: 300 cd/m²
Luminance Uniformity: 75%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time: 25 ms

Operating Conditions
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Technical specifications

• Model: YX35031A
• Display Size: 3.5 inch
• Resolution: 480×640 (RGB)
• Interface: RGB18-bit + SPI (dual interface)
• Driver IC: HX8363A
• LCD Type: a-Si TFT-LCD, Transmissive
• Viewing Direction: IPS (All-O'Clock wide viewing angle)
• Active Area: 53.28 × 71.04 mm
• Outline Dimensions: 64.00 × 85.00 × 3.00 mm
• Pixel Pitch: 0.111 × 0.111 mm
• Luminance: 300 cd/m²
• Contrast Ratio: 500 : 1
• Color Gamut: 50% NTSC
• Response Time: 25 ms
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
