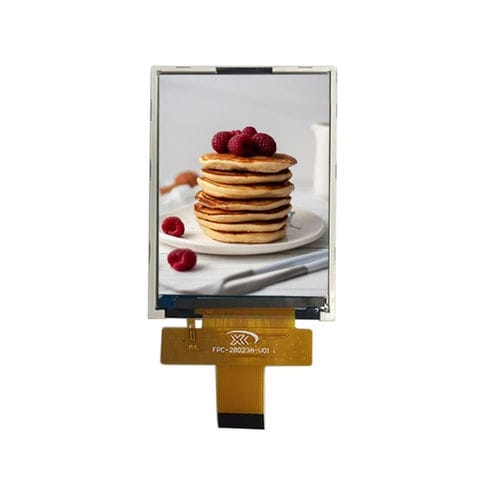

TFT LCD display module YX30001A

IPScolor360 x 640

Product Overview
The YX30001A is a 3.0-inch TFT LCD display module with 360 × 640 RGB resolution and a MIPI DSI interface. Driven by the ST7701S, it provides an IPS (All O’Clock) viewing angle and a slim 2.40 mm profile for space-constrained embedded systems and industrial terminals.

Key Features

• Display Size: 3.0 inch
• Resolution: 360 (RGB) × 640
• LCD Type: TFT-LCD, transmissive
• Viewing Direction: IPS / All O’Clock
• Driver IC: ST7701S
• Interface: MIPI DSI
• Backlight: White LED × 4

Basic Specifications
Item: Specification
Display Size: 3.0 inch
LCD Type: TFT-LCD, transmissive
Resolution: 360 (RGB) × 640
Active Area: 36.72 × 65.28 mm
Outline Dimensions: 42.64 × 74.51 × 2.40 mm
Pixel Pitch: 0.102 × 0.102 mm
Viewing Direction: All O’Clock (IPS)
Driver IC: ST7701S
Interface: MIPI DSI
Backlight: White LED × 4
LCM Input Voltage: 2.8 ±0.1 V

Mechanical
Compact mechanical design with a slim 2.40 mm profile for integration into portable instruments and tight enclosures. Mechanical drawing available on the product page.

Optical Characteristics
Parameter: Typical
Resolution: 360 × 640
Contrast Ratio: 250 : 1
Color Gamut: 70%
Luminance: 300 cd/m²
Luminance Uniformity: 60%
Viewing Angle (CR ≥ 10): 80° (All directions)
Response Time: 30 ms

Operating Conditions
Item: Range
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Humidity: ≤ 90% RH (60°C)

Application Notes
Designed for Linux- and Android-based platforms and high-performance embedded systems. Typical applications include portable instruments, medical terminals, POS systems and smart controllers where high display quality and limited space are required.

Technical Specifications

• Model: YX30001A
• Display Size: 3.0 inch
• Resolution: 360 × 640 (RGB)
• LCD Type: TFT-LCD, transmissive
• Active Area: 36.72 × 65.28 mm
• Outline Dimensions: 42.64 × 74.51 × 2.40 mm
• Pixel Pitch: 0.102 × 0.102 mm
• Viewing Direction: All O’Clock (IPS)
• Driver IC: ST7701S
• Interface: MIPI DSI
• Backlight: White LED × 4
• LCM Input Voltage: 2.8 ±0.1 V
• Luminance: 300 cd/m²
• Contrast Ratio: 250 : 1
• Response Time: 30 ms
• Operating Temperature: -20°C ~ +70°C
• Storage Temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
