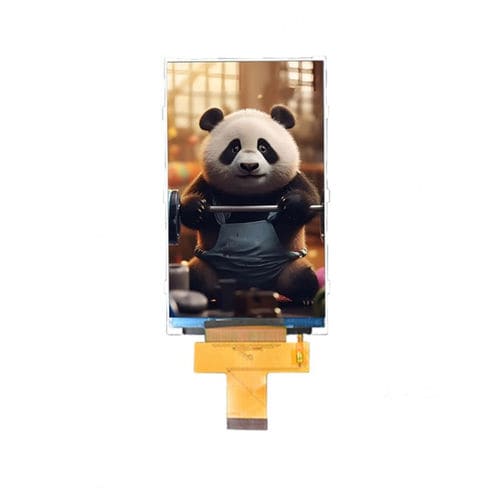

TFT LCD display module YX43022A

IPScolor800 x 480

Product Overview
The YX43022A (Yousee) is a 4.3" IPS TFT LCD display module with 800×480 (WVGA) resolution and an LVDS interface, engineered for industrial control systems, embedded terminals, medical devices and professional HMI applications. IPS technology and an All-O’Clock wide viewing angle ensure consistent color reproduction and stable image quality from any direction. The ST7262 driver IC provides reliable LVDS signal handling for high-speed, low-noise transmission. Its compact 4.3" format and 500 cd/m² luminance make the module suitable for indoor and semi-outdoor equipment requiring clear visibility and precise display performance.

Basic Specifications
Item — Specification
Display Size — 4.3 inch
LCD Type — IPS TFT-LCD, Transmissive
Resolution — 800 (RGB) × 480
Active Area — 95.04 × 53.86 mm
Outline Dimensions — 105.4 × 67.15 × 3.0 mm
Pixel Pitch — 0.1926 × 0.1926 mm
Viewing Direction — All-O’Clock
Driver IC — ST7262
Interface — LVDS

Mechanical Drawing
Mechanical drawing and dimension images are provided for mounting and integration reference.

Optical Characteristics
Parameter — Typical
Resolution — 800 × 480
Contrast Ratio — 800 : 1
Color Gamut — 60%
Luminance — 500 cd/m²
Luminance Uniformity — 80%
Viewing Angle (CR ≥ 10) — 80° (All directions)
Response Time — 25 ms

Operating Conditions
Item — Range
Operating Temperature — -20°C ~ +70°C
Storage Temperature — -30°C ~ +80°C
Humidity — ≤ 90% RH (60°C)

Technical specifications

• Model: YX43022A
• Display size: 4.3 inch
• Resolution: 800 (RGB) × 480 (WVGA)
• LCD type: IPS TFT-LCD, Transmissive
• Interface: LVDS
• Driver IC: ST7262
• Active area: 95.04 × 53.86 mm
• Outline dimensions: 105.4 × 67.15 × 3.0 mm
• Pixel pitch: 0.1926 × 0.1926 mm
• Contrast ratio: 800:1
• Color gamut: 60%
• Luminance: 500 cd/m²
• Luminance uniformity: 80%
• Viewing angle: All-O’Clock, 80° (all directions)
• Response time: 25 ms
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +80°C
• Humidity: ≤ 90% RH (60°C)
