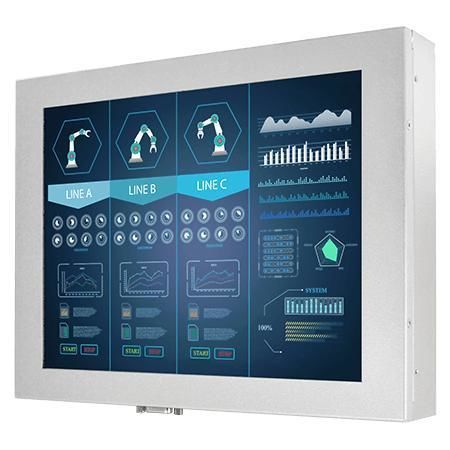

LCD monitor R10L600-CHP3TR

resistive touch screenindustrial10.4"

Overview
Winmate R10L600-CHP3TR is a 10.4-inch transflective chassis display for industrial visualization, control rooms and equipment monitoring. It is designed for continuous, low-power operation with options for touch and protective glass to support OEMs and system integrators requiring long lifecycle hardware.

Key Features

• 10.4 inch display, 640 x 480 resolution
• Transflective LCD for enhanced readability in bright ambient light
• VGA input standard; HDMI and DVI optional
• Chassis mount with VESA compatibility
• Low power consumption and fanless design

Product Details
Low power and cooling: Engineered for low power consumption and effective heat dissipation to support continuous use in production environments.

Mounting and integration: Universal mounting options for wall, desk or enclosure installation; VESA-compatible chassis simplifies mechanical integration.

Touch and glass options: Available with resistive touch (default), optional SAW or protection glass without touch, and other touch variants to suit application needs.

Reliability and materials: Metal housing with aluminum bezel, rugged assembly and multiple housing/material options for industrial deployments.

Image and assembly quality: Display modules are assembled under controlled conditions to ensure optical performance and ease of downstream integration.

Customization and I/O: Configurable panel brightness, glass surface treatment, display ports and region-specific power options. Standard I/O varies by configuration.

Certifications

• CE
• FCC

Technical specifications

• Size: 10.4 inches
• Model: R10L600-CHP3TR
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Resolution: 640 x 480
• Panel Brightness: 540.0 nits
• Contrast Ratio: 700:1
• View Angles: 80, 80, 80, 60
• Display Color: 16.2M Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 260 x 200 x 45 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
