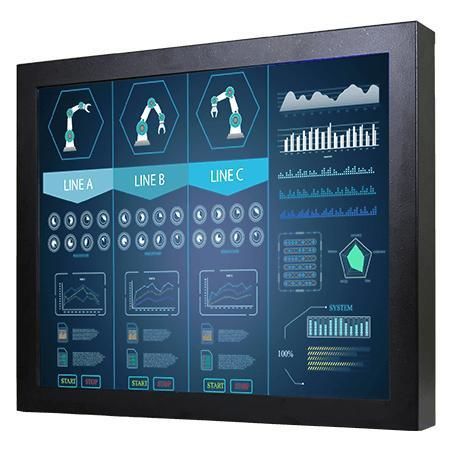

Resistive touch screen monitor R19L300-CHM2TR

PCAP capacitive touch screenindustrialfor HMI interface

Overview
The R19L300-CHM2TR is a 19" chassis transflective display designed for industrial visualization, control rooms and equipment monitoring. It combines transflective panel technology with a metal chassis and fanless cooling for reliable long-term operation in high ambient light and mission-critical environments.

Key features

• 19" display, 1280 x 1024 resolution (SXGA)
• Transflective panel for improved readability in sunlight and bright ambient light
• Standard VGA input; HDMI and DVI available as options
• Chassis mount with VESA mounting support
• Resistive touch standard; optional SAW, protection glass (no touch) or PCAP variants
• Fanless design and metal enclosure for stable thermal performance

Applications and benefits

• Industrial HMI and machine visualization
• Control room and SCADA displays
• OEM chassis integrations and embedded equipment monitoring
• Outdoor or vehicle installations requiring sunlight readability and low power consumption

Certifications

• CE
• FCC

Technical specifications (selected)

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits (transflective variants available)
• Contrast ratio: 2000:1
• Viewing angles: 89/89/89/89
• Display colors: 16.7M
• Active area: 376.32 x 301.06 mm
• Touch / Glass: Resistive Touch (default); Protection Glass w/o Touch (optional); SAW Touch (optional); PCAP optional
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Video I/O: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch screen
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Dimensions (W x H x D): 430 x 350 x 50 mm
• Mounting: VESA mount; chassis mount support
• Enclosure: Metal
• Cooling: Fanless design
• Power rating: 12V DC in (standard); 24V DC in optional
• Control buttons: 5 keys (-, +, Power, Esc, Enter)

Accessories & customization

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (product dependent)
• Optional: Remote controller, protection glass, alternative touch technologies, custom panel brightness and I/O configurations
