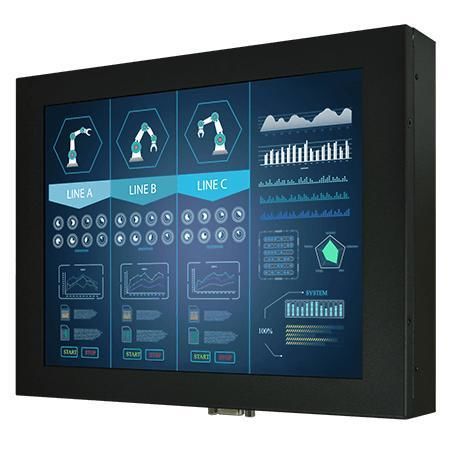

Resistive touch screen display R10T600-CHP3

color640 x 48010.4"

Key Features

• 10.4 inches, 640 x 480
• VGA and HDMI input
• Chassis-mount design
• VESA mount

Overview
Winmate R10T600-CHP3 is a 10.4-inch chassis-mount display designed for embedded, commercial and industrial applications. It is engineered for low power consumption and effective heat dissipation to support long-term operation in production environments.

Mounting and Installation
Universal mounting options support wall and desktop installation. VESA-compatible mounting ensures straightforward integration into control panels, kiosks and machinery enclosures.

Chassis-mount and Touch Options
Available with resistive touch, optional capacitive/SAW touch or protection glass without touch function. Multiple size and brightness variants are offered to suit indoor and outdoor requirements.

Reliability and Construction
Metal housing with aluminum bezel and fanless design provide a robust enclosure suitable for factory and industrial environments. Display modules are assembled in clean-room conditions and the product supports extensive customization (housing material, panel brightness, glass surface treatment, display ports, power plug styles, customer logo).

Certifications

• CE
• FCC

Technical specifications

• Model: R10T600-CHP3
• Display — Size: 10.4 inches; Resolution: 640 x 480; Panel Brightness: 450.0 nits; Contrast Ratio: 700:1; View Angles: 80,80,80,60; Display Color: 16.2M Colors; Active Area: 211.2 x 158.4 mm
• Touch / Glass — Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• Certification — CE, FCC
• IO Ports — USB Port: 1 x USB for Touch Screen (Optional); Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional); Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 259.8 x 199.8 x 45 mm; Mounting: VESA mount; Enclosure: Metal Housing with Aluminum Bezel; Cooling System: Fanless Design
• Accessory — Standard: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product). Optional: Remote Controller (Optional, Varies by product)
• Power — Power Rating: 12V DC in; 24V DC in (optional)
• Control — Buttons: 5 Keys: -, +, Power, Esc, Enter
