LCD monitor W18L100-CHA3HB

resistive touch screen18.5"1920 x 1080

Overview

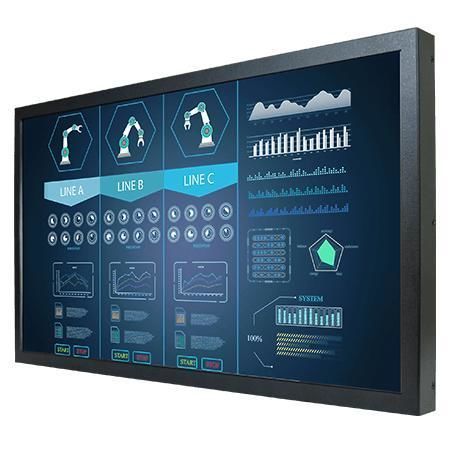

W18L100-CHA3HB is an 18.5-inch chassis high-brightness display engineered for industrial visualization, control rooms and equipment monitoring. Designed for continuous 24/7 use, it features a rugged metal enclosure, fanless cooling and configurable touch or protection glass options to fit industrial installations.

Key Features

• 18.5 inches, 1920 x 1080 Full HD resolution
• VGA input (default); optional HDMI and DVI
• Chassis mount form factor with VESA mounting
• High brightness panel (1000 nits) for bright or high-glare environments

Product Highlights

• Low power consumption with effective heat dissipation for long-term operation in production environments.
• Flexible mounting: universal options for wall and desktop integration to simplify installation.
• High brightness with optical-grade anti-reflective glass (optical bonding) to reduce reflections and improve readability.
• Chassis mount design available with resistive touch or protection glass (non-touch), configurable per application.
• High reliability: metal housing and fanless construction reduce particulate ingress and maintenance, supporting continuous industrial operation.
• Outstanding image quality: 16.7M colors, 1000:1 contrast ratio and wide viewing angles for clear control interfaces and monitoring data.

Certifications

• CE
• FCC

IO Ports & Audio

• USB: 1 × USB for touch screen
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 × speakers optional

Mechanical & Power

• Dimensions: 437.3 × 264.5 × 50 mm
• Active Area: 408.96 × 230.04 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Power Rating: 12V DC input (standard); 24V DC optional
• Control: 5 keys (-, +, Power, Esc, Enter)

Accessories

• Included: 1 × VGA cable, 1 × HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Technical Specifications

• Size: 18.5 inches
• Touch / Glass: Resistive touch (optional); protection glass without touch (optional)
• Resolution: 1920 × 1080 (Full HD)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M colors
• Active Area: 408.96 × 230.04 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 × USB for touch
• Video: 1 × VGA (default); 1 × HDMI (optional); 1 × DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 × speakers optional
• Dimensions: 437.3 × 264.5 × 50 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories Included: VGA cable, HDMI cable, AC-to-DC adapter, power cord, manual, VESA screws
• Optional Accessory: Remote controller (varies)
• Power Rating: 12V DC standard; 24V DC optional
• Control Buttons: 5 keys (-, +, Power, Esc, Enter)
