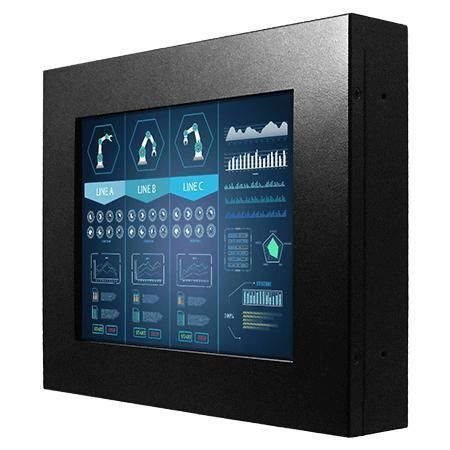

Resistive touch screen display R08L200-CHU1

color800 x 6008.4"

Overview
This 8.4 inches chassis display R08L200-CHU1 is designed for embedded and industrial applications where compact footprint, low power consumption and reliable thermal behavior are required. The chassis form factor supports integration into control panels, kiosks and machine housings.

Key Features

• 8.4 inches, 800 x 600 resolution
• VGA input standard; HDMI/DVI optional
• Chassis mount with VESA compatibility
• Available with resistive touch, optional SAW or non-touch glass
• High panel brightness (600 nits) and fanless cooling

Certifications
CE, FCC

Product Details
Low power design and effective heat dissipation for continuous operation in production environments. Universal mounting options enable wall or desk installation and easy integration into embedded systems. Factory-assembled display modules facilitate subsequent processing and customization.

IO & Customization
Touch input via USB (for touch configurations). Video inputs include 1 x VGA (standard) with 1 x HDMI and 1 x DVI available as options. Optional audio line-in and speakers. Customization options include panel brightness, glass treatment, display ports, logo and mechanical adaptations to fit customer enclosures.

Technical specifications

• Model: R08L200-CHU1
• Brand: Winmate
• Size: 8.4 inches
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 800 x 600
• Panel Brightness: 600.0 nits
• Contrast Ratio: 600:1
• View Angles: 75, 75, 60, 70
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 220 x 160 x 45 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in
• Button / Control: 5 Keys (-, +, Power, Esc, Enter)
