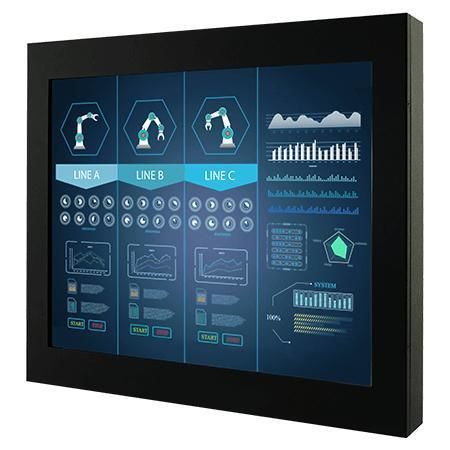

Monitor with touchscreen R15L100-CHA3

resistive touch screenprojected capacitive touchscreenPCAP capacitive touch screen

Overview
Winmate R15L100-CHA3 is a 15-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It targets OEMs, system integrators and industrial buyers who need a VESA-mountable metal-housed display with fanless cooling and long lifecycle availability.

Key features

• 15-inch display, 1024 x 768 resolution, 500 nits panel brightness
• VGA input (standard); HDMI and DVI optional
• Chassis mount form factor with VESA mounting
• Metal enclosure with aluminum bezel; fanless thermal design

Applications & benefits
Low power consumption and effective heat dissipation support continuous operation in production lines and control centers. Universal mounting options enable panel, wall or desk installation. Configurable I/O and touch options simplify integration into embedded systems and OEM platforms.

Touch & visibility options

• Default: resistive touch; optional: protection glass without touch, SAW or projected-capacitive (PCAP) touch
• High brightness and contrast deliver readable images across varied indoor lighting conditions

Certifications

• CE
• FCC

Technical specifications

• Display size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 2500:1
• Viewing angles: 88/88/88/88
• Display color: 16.7M colors
• Active area: 304.1 x 228.1 mm
• Touch / glass: Resistive (default); Protection glass w/o touch (optional); SAW (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB for touch screen
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speakers (optional)
• Mechanical dimensions: 369.6 x 289.6 x 47 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessories: Remote controller (optional)
• Power rating: 12V DC input (24V DC optional)
• Control / buttons: 5 keys: -, +, Power, Esc, Enter
