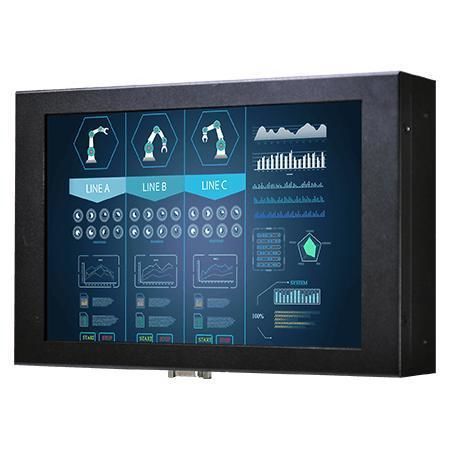

LCD monitor W10L100-CHH2

resistive touch screencapacitive touch screenindustrial

Overview
Winmate W10L100-CHH2 is a 10.1-inch chassis display for industrial visualization, control rooms and equipment monitoring. It is intended for OEMs, system integrators and industrial buyers seeking long-lifecycle availability and easy hardware integration.

Key Features

• 10.1 inches, 1280 x 800 resolution
• VGA (default), HDMI and DVI options
• Chassis mount with VESA mounting
• Fanless metal housing with aluminum bezel
• Optional resistive or capacitive touch and high-brightness panels

Product Highlights

• Low power, fanless design: Optimized for low consumption and effective heat dissipation for continuous operation.
• Flexible mounting: Universal mounting options for wall, desk or cabinet integration.
• Touch and protection options: Resistive touch or protection glass without touch for glove use or harsh environments.
• Customisation: Panel brightness, glass treatment, IO ports and power options configurable to project needs.
• Industrial reliability: Industrial-grade components and rugged enclosure for factory environments.

Certifications

• CE
• FCC

Applications

• PLC operator panels and HMI interfaces
• Production line monitoring and control rooms
• Embedded systems, kiosks and OEM equipment

Technical specifications

• Model: W10L100-CHH2
• Brand: Winmate
• Display size: 10.1 inches
• Resolution: 1280 x 800
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional)
• Panel brightness: 350 nits (1000 nits optional)
• Contrast ratio: 800:1
• View angles: 85/85/85/85
• Display color: 16.7M
• Active area: 216.96 x 135.6 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO ports: 1 x USB (touch); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Dimensions: 270 x 160 x 38 mm
• Weight: 1.2 kg
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories: 1 x VGA cable, 1 x HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (optional)
• Power rating: 12V DC input (24V DC optional)
• Control / buttons: 5 keys: -, +, Power, Esc, Enter
