Touch screen display R08L200-CHU1TR
capacitive touch screenresistive touch screentransflective

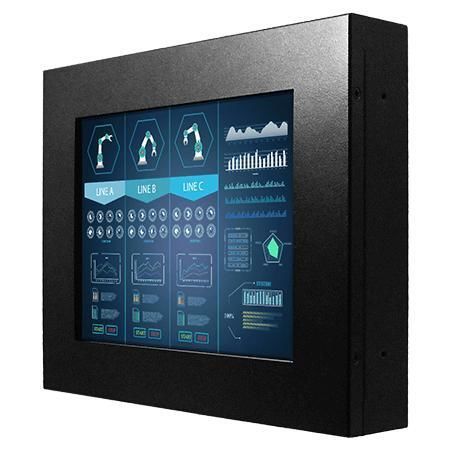

Touch screen display - R08L200-CHU1TR - Winmate, Inc. - capacitive touch screen / resistive touch screen / transflective
Touch screen display - R08L200-CHU1TR - Winmate, Inc. - capacitive touch screen / resistive touch screen / transflective
Touch screen display - R08L200-CHU1TR - Winmate, Inc. - capacitive touch screen / resistive touch screen / transflective - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
touch screen, capacitive touch screen, resistive touch screen
Type
transflective
Format
800 x 600
Screen size
8.4"
Applications
industrial, for control panels, HMI
Interface
HDMI, VGA, USB
Configuration/mounting
outdoor, indoor, wall-mounted, VESA mounting
Other characteristics
adjustable brightness, high-brightness, with cover glass
Length

220 mm
(8.661 in)

Width

160 mm
(6.2992 in)

Height

45 mm
(1.7717 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Key features
  • 8.4-inch transflective chassis display, 800 x 600 resolution
  • VGA and HDMI input (HDMI optional); DVI optional
  • Chassis-mount form factor with VESA compatibility
  • Transflective panel suitable for varied lighting conditions
  • Touch options: resistive, capacitive, SAW (optional)


Certifications
  • CE
  • FCC


Overview
  • Low power consumption and effective heat dissipation for reliable long-term operation in production environments.
  • Universal mounting options for wall and desktop installation, enabling straightforward deployment across industries.
  • Chassis-mount display available with multiple touch and brightness configurations for indoor and outdoor applications.
  • Industrial-grade metal enclosure and fanless design for dependable operation in factory environments.
  • High image quality with clean-room assembly and options for customizing panel brightness, glass treatment, display ports and regional power plugs.


Technical specifications
  • Model: R08L200-CHU1TR
  • Brand: Winmate
  • Display size: 8.4 inches
  • Resolution: 800 x 600
  • Panel brightness: 600 nits
  • Contrast ratio: 600:1
  • View angles: 75, 75, 60, 70
  • Display color: 262K colors
  • Active area: 170.4 x 127.8 mm
  • Touch / Glass: Resistive touch; Protection glass w/o touch function (optional); SAW touch (optional)
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -10°C to 60°C
  • USB port: 1 x USB for touch screen
  • Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
  • Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
  • Dimensions: 220 x 160 x 45 mm
  • Mounting: VESA mount
  • Enclosure: Metal housing with aluminum bezel
  • Cooling system: Fanless design
  • Power rating: 12V DC in
  • Controls: 5 keys: -, +, Power, Esc, Enter
  • Accessories included: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
  • Optional accessory: Remote controller (optional, varies by product)
