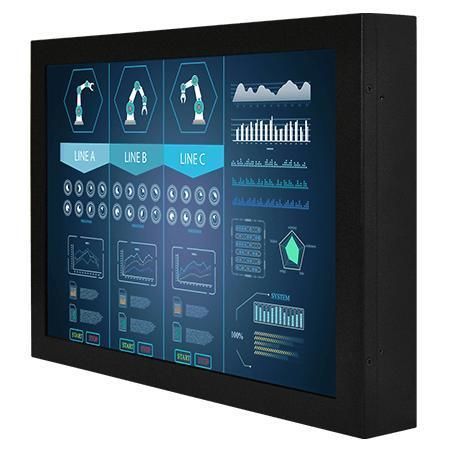

LCD monitor W12L100-CHM9

resistive touch screenindustrial12.1"

Overview
Winmate W12L100-CHM9 is a 12.1-inch chassis display designed for industrial visualization, control rooms and equipment monitoring. It features a metal enclosure with aluminum bezel, fanless cooling and low power consumption for reliable 24/7 operation. Mounting options include chassis and VESA configurations; touch options are resistive by default with protection glass or SAW touch available as alternatives.

Key features

• 12.1" display with 1280 x 800 resolution
• VGA input (default); HDMI and DVI optional
• Chassis mount form factor with VESA support
• 400 nits panel brightness and 1000:1 contrast ratio
• Resistive touch (default); optional SAW or protection glass-only
• Fanless design and metal housing with aluminum bezel

Certifications

• CE
• FCC

Specifications

• Display - Size: 12.1 inches
• Display - Resolution: 1280 x 800
• Display - Panel Brightness: 400 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 88,88,88,88
• Display - Display Color: 16.2M Colors
• Display - Active Area: 261.12 x 163.2 mm
• Touch / Glass - Default: Resistive Touch Screen
• Touch / Glass - Optional: Protection Glass (no touch) or SAW Touch (Surface Acoustic Wave)
• Environment - Operating Humidity: 10% to 90% RH, non-condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• IO Ports - USB: 1 x USB for touch screen
• IO Ports - Video: 1 x VGA (Default), 1 x HDMI (Optional), 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 310 x 200 x 45 mm
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal housing with aluminum bezel
• Mechanical - Cooling System: Fanless design
• Accessory - Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Accessory - Optional: Remote controller (optional, varies by product)
• Power - Power Rating: 12V DC input (24V DC optional)
• Control - Buttons: 5 keys (-, +, Power, Esc, Enter)
