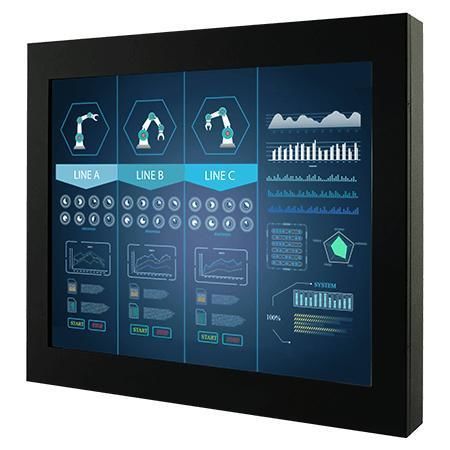

Resistive touch screen monitor R17L500-CHA1HB

capacitive touch screenfor displaysfor industrial machines

Overview
Winmate R17L500-CHA1HB is a 17-inch chassis high-brightness display for industrial visualization, control rooms and equipment monitoring. It is designed for reliable 24/7 operation in embedded, rugged or mission-critical systems and supports chassis or VESA integration.

Key features

• 17" diagonal display, 1280 x 1024 resolution
• VGA (default), HDMI (optional), DVI (optional)
• Chassis-mounted form factor with VESA compatibility
• High brightness panel (1000 nits)
• Optional resistive or capacitive touch; protection glass option

Product highlights

• Low power consumption: Optimized for low power use and effective heat dissipation for continuous operation in production environments.
• Easy mounting: Universal mounting options for wall and desk installations enable flexible integration in various industrial settings.
• High brightness & optical bonding: Optical-grade anti-reflective glass (optical bonding) reduces reflections, increases contrast and improves readability under direct light and high humidity.
• Chassis mount flexibility: Available with resistive or capacitive touch options and offered in multiple sizes and brightness levels for indoor and outdoor applications.
• High reliability: Rugged enclosure and industrial-grade assembly for long service life in factory and control-room applications.
• Customization: Multiple display port options and configurable choices for glass treatment, brightness, connectors and power inputs.

Certifications

• CE
• FCC

Technical specifications

• Size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80 (typical)
• Display Color: 16.2M (16.7M reported in some summaries)
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
