LCD monitor R15L100-CHA1

touch screenresistive touch screenindustrial

Product

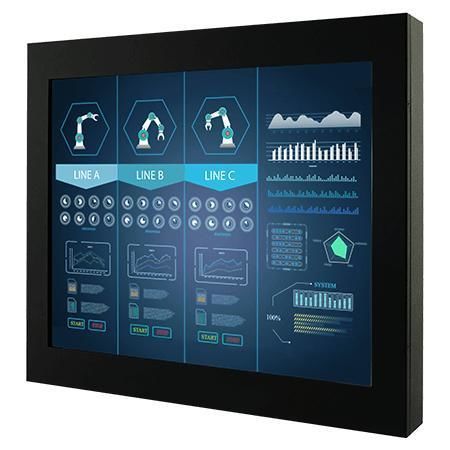

The Winmate R15L100-CHA1 is a 15-inch chassis industrial touchscreen designed for industrial automation, embedded systems and mission-critical applications. It provides long-lifecycle hardware integration, low power consumption and a fanless thermal design for reliable field operation.

Key Features

• 15-inch display, 1024 x 768 resolution
• VGA input (default) and HDMI/DVI options
• Chassis mounting form factor, VESA compatible
• Resistive touch (default); Protection glass or SAW touch options

Certifications

• CE
• FCC

Overview — Low Power Consumption
Engineered for low power draw and effective heat dissipation to support continuous operation in production environments and long service life.

Overview — Easy Mounting
Universal mounting options including wall, desk and VESA make installation straightforward across control panels, kiosks and equipment enclosures.

Overview — Chassis Mount Display
The chassis form factor facilitates integration into control cabinets and machine housings. Available with multiple touch options and brightness ranges for indoor and sheltered outdoor use.

Overview — High Reliability for Industrial Applications
Metal housing with aluminum bezel, rugged construction and fanless design ensure resistance to shock, vibration and typical industrial conditions for sustained operation.

Overview — Outstanding Image Quality
High-quality display modules are assembled under controlled conditions to deliver consistent color and contrast for machine interfaces and visualization tasks.

Overview — Display Ports and Customization
Wide customization possibilities: product size, customer logo, LCD brightness, glass surface treatment, display ports and regional power plug options. (Customization options vary by product version.)

Technical Specifications

• Display - Size: 15.0 inches
• Display - Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Display - Resolution: 1024 x 768
• Display - Panel Brightness: 350 nits
• Display - Contrast Ratio: 800:1
• Display - View Angles: 80 / 80 / 70 / 80 (°)
• Display - Display Color: 16.2M Colors
• Display - Active Area: 304.128 x 228.096 mm
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO Ports - USB Port: 1 x USB for touch screen
• IO Ports - Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 369.6 x 289.6 x 47 mm
• Mechanical - Weight: 3.4 kg
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal housing with aluminum bezel
• Mechanical - Cooling System: Fanless design
• Power - Power Rating: 12V DC in; 24V DC in (optional)
• Control - Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessory - Standard: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Accessory - Optional: Remote controller (optional, varies by product)
