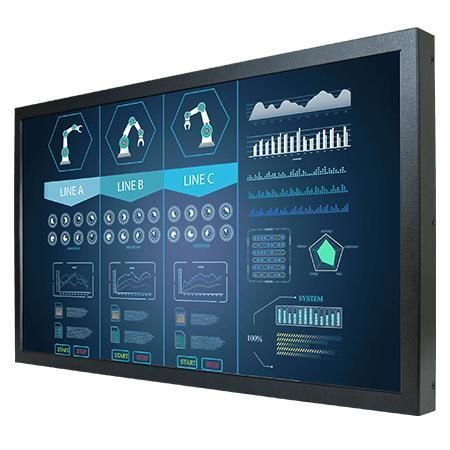

LCD monitor W22L100-CHA3HB

resistive touch screencapacitive touch screenindustrial

Overview
Winmate W22L100-CHA3HB is a 21.5-inch chassis high-brightness display for industrial visualization, control rooms and equipment monitoring. Designed for OEMs, system integrators and industrial buyers, it provides a fanless metal enclosure and long-lifecycle availability suitable for 24/7 operation in harsh or embedded environments.

Key Features

• 21.5-inch, 1920 x 1080 Full HD
• Panel brightness: 1000 nits (sunlight readable)
• VGA input (default); HDMI and DVI optional
• Chassis mount design with VESA support
• Fanless metal enclosure for reliable industrial operation

Product highlights and benefits

• Low power consumption and effective heat dissipation for continuous use
• Universal mounting options (wall, desk) and VESA compatibility for flexible installation
• Anti-reflective glass with optical bonding to eliminate air gap, reduce reflections and improve contrast in bright environments
• Touch variants: resistive touch (default); optional protection glass without touch, SAW touch; capacitive touch available in product family
• Wide customization options: panel brightness, glass surface treatment, display ports, product dimensions, customer logo and power plug style

Certifications

• CE
• FCC

Technical specifications

• Model: W22L100-CHA3HB
• Display size: 21.5 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 5000
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x Speaker (Optional)
• Dimension: 506.5 x 302.5 x 60.5 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
• Accessories included (examples): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
