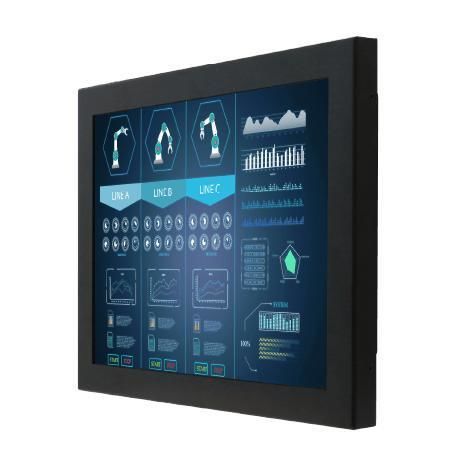

LCD monitor R12L600-CHM2

resistive touch screenfor HMI interface12.1"

Overview
The Winmate R12L600-CHM2 is a 12.1-inch chassis display designed for industrial visualization, control rooms and equipment monitoring, providing long-term availability and easy integration for OEMs and system integrators.

Key features

• 12.1-inch LCD, 1024 x 768 resolution
• Panel brightness 500 nits; contrast ratio 1000:1
• VGA input (default), HDMI and DVI optional
• Chassis-mount form factor with VESA support
• Resistive touch standard; optional SAW or protection glass without touch
• Metal enclosure, fanless cooling for 24/7 operation

Applications

• Industrial HMI and machine control panels
• Control room and monitoring stations
• Embedded OEM equipment and kiosks requiring chassis mounting

Certifications

• CE
• FCC

Technical specifications

• Display: Size: 12.1 inches; Resolution: 1024 x 768; Panel brightness: 500 nits; Contrast ratio: 1000:1; View angles: 89,89,89,89; Colors: 16.2M; Active area: 245.76 x 184.32 mm
• Touch / Glass: Resistive touch screen (default); Protection glass w/o touch (optional); SAW touch (optional)
• Environment: Operating humidity: 10% to 90% RH non-condensing; Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IO ports: 1 x USB (touch); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); Audio line in (3.5 mm) optional; 2 x speakers optional
• Mechanical: Dimensions: 290 x 230 x 45 mm; Weight: ~2 kg; Mounting: VESA mount; Enclosure: Metal; Cooling: Fanless design
• Power & control: Power input: 12V DC (24V optional); Buttons: 5 keys (-, +, Power, Esc, Enter)
• Accessories: Standard: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws; Optional: remote controller
