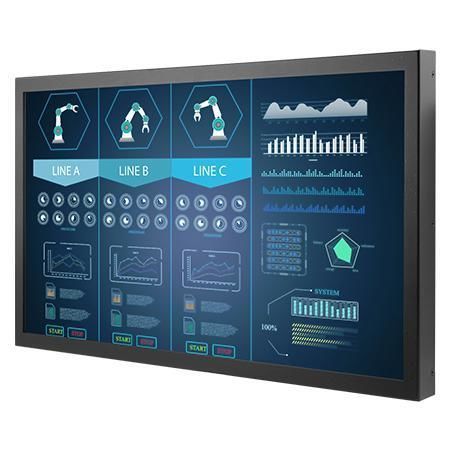

LCD monitor W22L100-CHA3

resistive touch screenindustrial21.5"

Product Summary
Winmate W22L100-CHA3 is a 21.5-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It delivers a 1920 x 1080 Full HD panel in a metal enclosure with chassis-mount form factor suitable for OEM integration and system integrators.

Key Features

• 21.5" Full HD (1920 x 1080) panel, 16.7M colors
• VGA input (default); HDMI and DVI optional
• Chassis-mount design with VESA mounting support
• 250 nits panel brightness, 3000:1 contrast ratio
• Metal enclosure, fanless cooling
• Touch options: resistive (default), SAW or protection glass variants

Product Highlights

• Low power design and effective heat dissipation for continuous operation in production and control environments.
• Universal mounting options (wall, desk, rear/panel mounting depending on configuration) for straightforward integration into industrial racks and equipment.
• Configurable touchscreen and protection glass options to match HMI and kiosk requirements.
• Available brightness and interface variants to support indoor monitoring, automation panels and embedded systems.

Certifications
CE, FCC

Accessories and Options

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller, audio line-in or speakers, alternate power input (24V DC), custom I/O

Technical Specifications

• Model: W22L100-CHA3
• Size: 21.5 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video Inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 506 x 302 x 60.5 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
