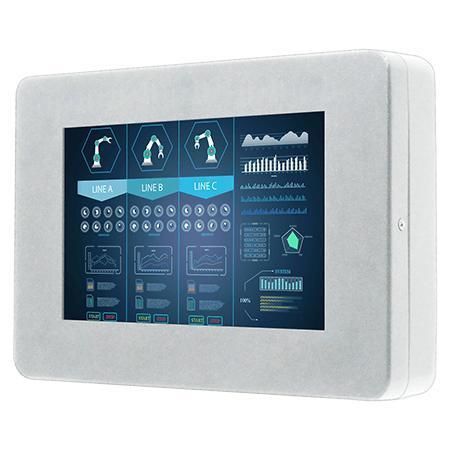

TFT LCD display W07T700-CHA4TR

resistive touch screentransflective800 x 480

Overview
This 7-inch transflective chassis mount display is designed for industrial embedded applications where low power consumption, effective heat dissipation and long-term reliability are required.

Key features

• 7 inches, 800 x 480 resolution
• VGA and HDMI input
• Chassis design with VESA mounting
• Transflective panel for improved daylight readability
• Optional resistive touch or protection glass

Certifications

• CE
• FCC

Mounting and integration
Universal mounting options enable installation on walls or desks and integration into equipment racks. VESA mount simplifies mechanical integration into OEM systems.

Chassis mount display
Chassis-mount construction facilitates panel integration into control cabinets and embedded housings. Touch options (resistive) or protective glass (no touch) are available depending on the application.

Reliability and image quality
Metal enclosure and fanless design support continuous factory operation. The transflective panel and 500 nits brightness deliver readable images in mixed lighting conditions; modules are assembled in controlled conditions for consistent performance.

Display ports and customization
Multiple customization options: panel brightness, glass surface treatment, display ports (VGA/HDMI/DVI), power plug style, customer logo and accessory selection. Port and accessory availability may vary by model.

Technical specifications

• Model: W07T700-CHA4TR
• Display Size: 7.0 inches
• Resolution: 800 x 480
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Panel Brightness: 500.0 nits
• Contrast Ratio: 1000:1
• View Angles: 80, 80, 80, 80
• Display Color: 16.2M Colors
• Active Area: 152.4 x 91.44 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 218 x 164.6 x 60.8 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
