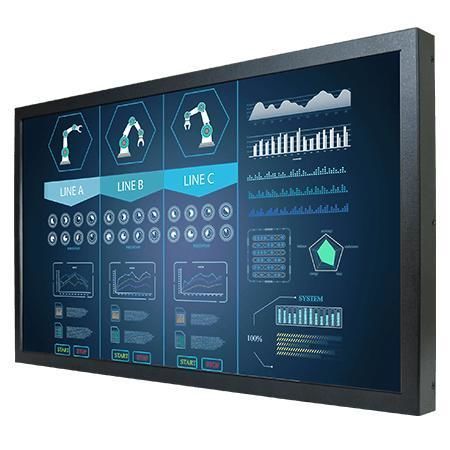

Resistive touch screen monitor W24L100-CHS1

24"1920 x 1200VESA mounting

Overview
The W24L100-CHS1 is a 24.0-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It provides long lifecycle availability and is suited for OEMs, system integrators and factory installations requiring continuous operation and easy integration.

Key Features

• 24.0-inch display, 1920 x 1200 resolution
• VGA input (standard); HDMI and DVI optional
• Chassis-mount form factor, VESA compatible
• Metal enclosure with fanless cooling

Design & Benefits

• Low power consumption and efficient heat dissipation for continuous operation in production environments
• Universal mounting options for panel, wall or desk installation
• Touch options: resistive (default), SAW (optional) or protection glass without touch
• Industrial-grade components and construction for reliable 24/7 use in control rooms and monitoring stations

Certifications

• CE
• FCC

Technical specifications

• Model: W24L100-CHS1
• Display Size: 24.0 inches
• Resolution: 1920 x 1200
• Panel Brightness: 300 nits
• Contrast Ratio: 1000:1
• View Angles: 89 / 89 / 89 / 89 (degrees)
• Display Color: 16.7M colors
• Active Area: 518.4 x 324.0 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IO Ports: 1 x USB for touch screen
• Video Inputs: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Mechanical Dimensions: 564 x 370 x 59 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (standard); 24V DC input (optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories (typical): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (varies by product)
