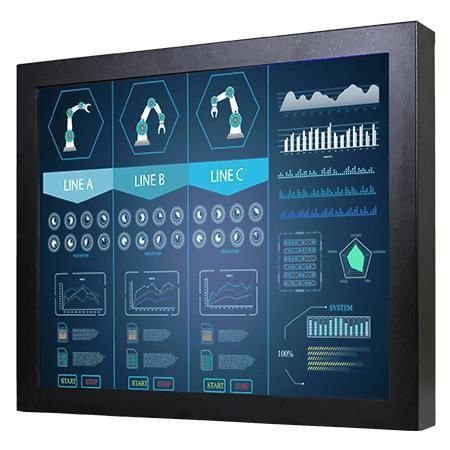

LCD monitor R19L300-CHM2

resistive touch screenindustrialfor displays

Overview
The R19L300-CHM2 is a 19-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It supports stable hardware integration and long lifecycle availability for embedded and mission-critical environments.

Key features

• 19-inch diagonal display with 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Chassis-mount form factor with VESA mounting
• Metal enclosure and fanless design for industrial installation
• Touch options: Resistive touch (default); Protection glass without touch (optional); SAW touch (optional)

Design and reliability

• Low power consumption and effective heat dissipation for continuous operation in production sites
• Universal mounting options for wall and desk installation to suit different integration needs
• Configurable panel settings (brightness, glass treatment) and multiple I/O choices for system integration
• Long-term availability and certifications suited for industrial projects

Certifications

• CE
• FCC

Technical specifications

• Size: 19.0 inches
• Resolution: 1280 x 1024
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension (W x H x D): 430 x 355 x 40 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: 12V DC input (24V DC optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
