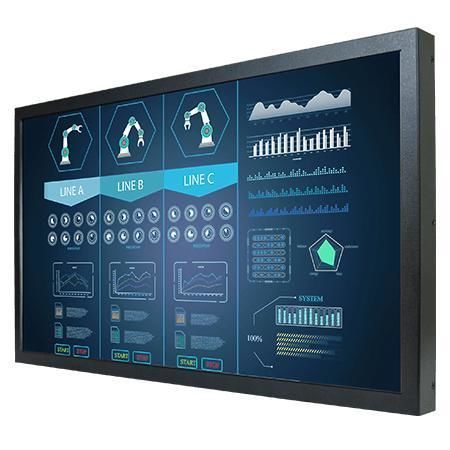

Resistive touch screen monitor W24L100-CHA2HB

LED backlightindustrialfor HMI interface

Overview
Winmate W24L100-CHA2HB is a 24-inch chassis high-brightness display designed for industrial visualization, control rooms and equipment monitoring. The model provides a chassis-mount form factor, VESA compatibility and options for touch or protected glass to fit embedded and mission-critical installations.

Key Features

• 24" display, 1920 x 1080 (Full HD)
• High brightness: 1000 nits
• Video inputs: 1 x VGA (default); HDMI and DVI optional
• Chassis mount with VESA support
• Metal enclosure and fanless design

Certifications

• CE
• FCC

Product highlights

• Low power design and effective heat dissipation for continuous operation in production and control environments.
• Flexible mounting: supports wall, desk and chassis installations via VESA interfaces for integration in OEM systems or multi-screen setups.
• Optical bonding and anti-reflective glass options to reduce reflections, increase contrast and maintain readability in high ambient light.
• Touch and glass options: resistive touch (default), protection glass without touch, or SAW touch available to match integration requirements.
• Customizable interfaces and accessories: configurable display ports, panel brightness, glass treatment, power plug styles and optional remote control.

Technical specifications

• Model: W24L100-CHA2HB
• Display size: 24.0 inches
• Resolution: 1920 x 1080
• Panel brightness: 1000 nits
• Contrast ratio: 3000:1
• Viewing angles: 89 / 89 / 89 / 89
• Display color: 16.7M colors
• Active area: 527.04 x 296.46 mm
• Touch / Glass: Resistive touch (default); Protection glass w/o touch (optional); SAW touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: USB 1 x (for touch); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); Audio line-in (3.5 mm) and 2 x speakers (optional)
• Mechanical: 560 x 328 x 64 mm; Enclosure: Metal; Mounting: VESA mount; Cooling: Fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included (examples): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
