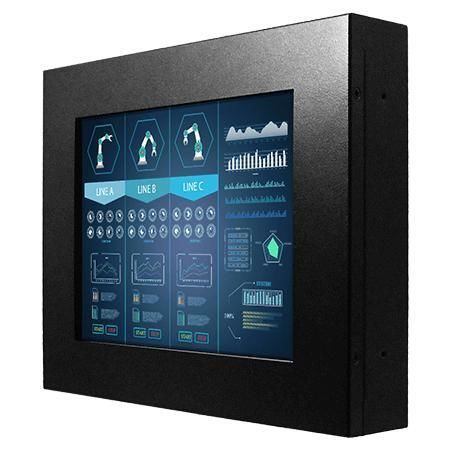

Touch screen monitor R08T100-CHA1

LCDresistive touch screencapacitive touch screen

Product
8.0-inch chassis display R08T100-CHA1 for embedded and industrial applications.

Key features

• 8.0", 800 × 600 industrial touchscreen LCD
• VGA input; HDMI and DVI optional
• Chassis mount form factor with VESA compatibility
• Resistive touch (optional) or protection glass without touch
• Metal enclosure, fanless design

Certifications

• CE
• FCC

Overview
Low power consumption and effective heat dissipation make this chassis display suitable for long-term use in production environments. Universal mounting options support wall and desktop installation for easy integration into various industrial setups.

The chassis mount design is available with resistive or capacitive touch options and multiple brightness levels for indoor and limited outdoor use. The metal enclosure and fanless cooling support reliable operation in factory settings.

Display modules are assembled for consistent image performance. Multiple I/O options and customization (touch type, panel brightness, glass surface treatment, display ports, power plug type, customer logo) allow adaptation to specific application and regional requirements.

Technical specifications

• Size: 8.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 800 × 600
• Panel Brightness: 250 nits
• Contrast Ratio: 500:1
• View Angles: 70, 70, 70, 50
• Display Color: 16.2M Colors
• Active Area: 162 × 121.5 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 × USB for touch screen
• Video: 1 × VGA; 1 × HDMI (Optional); 1 × DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 × Speaker (Optional)
• Dimension: 207.4 × 165.4 × 26 mm
• Weight: 1.5 kg
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessory (included): 1 × VGA cable; 1 × HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC in
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
