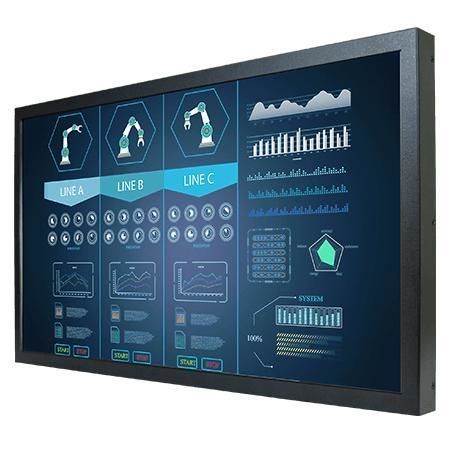

LCD monitor W24L100-CHA2

resistive touch screenindustrialfor displays

Product Overview
Winmate W24L100-CHA2 is a 24-inch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It is suited to embedded installations, control cabinets and mission-critical systems where standardized mounting, predictable lifecycle and configurable I/O are required.

Key Features

• 24" diagonal, Full HD 1920 x 1080
• VGA input (default); HDMI and DVI optional
• Chassis mount form factor with VESA compatibility
• Resistive touch standard; Protection glass or SAW touch optional
• Fanless metal enclosure

Certifications

• CE
• FCC

Low Power Consumption
Designed for efficient power use and effective heat dissipation to support continuous operation in production and control environments.

Mounting and Integration
Provides VESA and universal mounting options for integration into panels, racks, cabinets or wall installations to simplify system assembly and serviceability.

Display Options and Reliability
Available with multiple touch and protection configurations, panel brightness and custom I/O to match industrial application requirements. Metal enclosure and fanless design reduce ingress and maintenance needs.

Ports and Customization

• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch
• Audio: line-in 3.5 mm (optional); 2 x speakers (optional)
• Power: 12V DC in (standard); 24V DC in (optional)

Technical specifications

• Model: W24L100-CHA2
• Size: 23.8 inches
• Resolution: 1920 x 1080
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• Viewing Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Touch / Glass: Resistive Touch (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Dimensions: 560 x 328 x 64 mm
• Weight: 8 kg
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Control Buttons: 5 Keys (-, +, Power, Esc, Enter)
• Included accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
