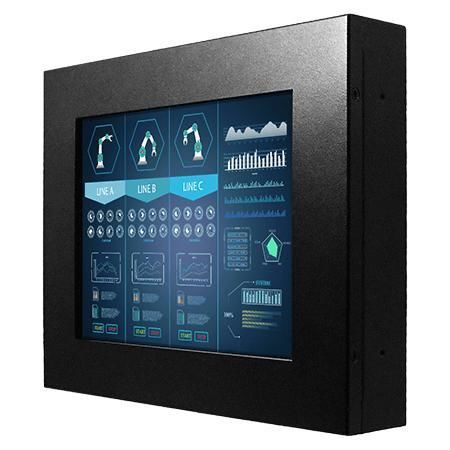

LCD display R06L200-CHA1

resistive touch screencolor640 x 480

Overview
Winmate 6.5-inch chassis-mount display R06L200-CHA1 for embedded and industrial applications. Designed for low power consumption and efficient heat dissipation to support continuous operation in production and equipment environments. Available with resistive touch or as protection glass (non-touch).

Key Features

• 6.5" diagonal, 640 x 480 resolution
• VGA input; HDMI (optional); DVI (optional)
• Chassis-mount form factor with VESA compatibility
• Optional resistive touch and protection glass variants

Product Highlights

• Low power & reliable operation: Fanless design and optimized thermal path for long-term industrial use.
• Flexible mounting: Universal options for wall, desk or equipment integration (VESA).
• Customization: Panel brightness, glass surface treatment, I/O ports, and logo options available per project requirements.
• Industrial-grade build: Metal enclosure, industrial components and optional audio/USB interfaces for system integration.
• Multiple video interfaces: Standard VGA plus optional HDMI/DVI to match diverse controllers.

Certifications

• CE
• FCC

Specifications

• Model: R06L200-CHA1
• Brand: Winmate
• Size: 6.5 inches
• Resolution: 640 x 480
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional)
• Panel Brightness: 700 nits
• Contrast Ratio: 600:1
• Viewing Angles: 80/80/70/70 (deg)
• Display Color: 16.2M Colors
• Active Area: 132.48 x 99.36 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch
• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Line-in 3.5mm (optional); 2 x Speakers (optional)
• Dimensions: 200 x 149 x 45 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC in
• Controls: 5 keys: -, +, Power, Esc, Enter
