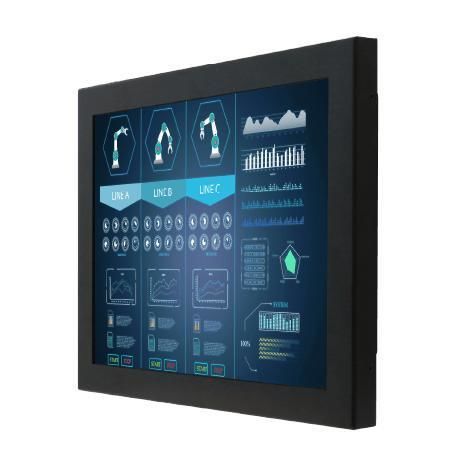

TFT monitor R12L600-CHM2TRresistive touch screenindustrialfor industrial machines
Add to favorites
Compare this product
Characteristics
- Technology
- TFT, resistive touch screen
- Applications
- industrial, for industrial machines, for HMI interface
- Display size
- 12.1"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting, for integration, chassis-mounted
- Other characteristics
- HDMI, USB, VGA, aluminum, DVI port, fanless
- Width
290 mm
(11.4173 in)- Height
230 mm
(9.0551 in)- Thickness
45 mm
(1.772 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Overview
Winmate R12L600-CHM2TR is a 12.1" chassis transflective industrial display designed for visualization, control rooms and equipment monitoring. It provides a low-power, fanless chassis form factor with flexible touch and video interface options for integration into industrial enclosures and OEM systems.
Key Features
Applications
Technical specifications
Accessories & options
Winmate R12L600-CHM2TR is a 12.1" chassis transflective industrial display designed for visualization, control rooms and equipment monitoring. It provides a low-power, fanless chassis form factor with flexible touch and video interface options for integration into industrial enclosures and OEM systems.
Key Features
- 12.1" diagonal TFT, 1024 x 768 resolution
- Transflective panel optimized for indoor/bright-environment readability
- Panel brightness: 600 nits; contrast ratio: 700:1
- Chassis mount with VESA support; metal housing with aluminum bezel
- Default resistive touch; optional protection glass or SAW touch
- Fanless design for quiet, maintenance‑free operation
Applications
- Industrial visualization and HMI panels
- Control rooms and equipment monitoring
- OEM integration into control cabinets and embedded systems
Technical specifications
- Model: R12L600-CHM2TR
- Display size: 12.1 inches
- Resolution: 1024 x 768
- Panel brightness: 600 nits
- Contrast ratio: 700:1
- Viewing angles: 80°, 80°, 70°, 70°
- Colors: 16.2M colors
- Active area: 261.12 x 163.2 mm
- Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
- IO ports: 1 x USB for touch
- Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
- Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
- Mechanical dimensions: 290 x 230 x 45 mm
- Mounting: VESA mount / chassis mount
- Enclosure: Metal housing with aluminum bezel
- Cooling: Fanless design
- Operating humidity: 10% to 90% RH, non-condensing
- Operating temperature: 0°C to 50°C
- Storage temperature: -10°C to 60°C
- Certification: CE, FCC
- Power: 12V DC input (24V DC optional)
- Control: 5 keys: -, +, Power, Esc, Enter
Accessories & options
- Included (varies by product): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
- Optional: Remote controller, speakers, alternative touch or glass treatments, custom brightness or power input
